Front Compartment Fuse Block Fuse Replacement (MIDI-Fuse)
Front Compartment Fuse Block Fuse Replacement (MIDI-Fuse)

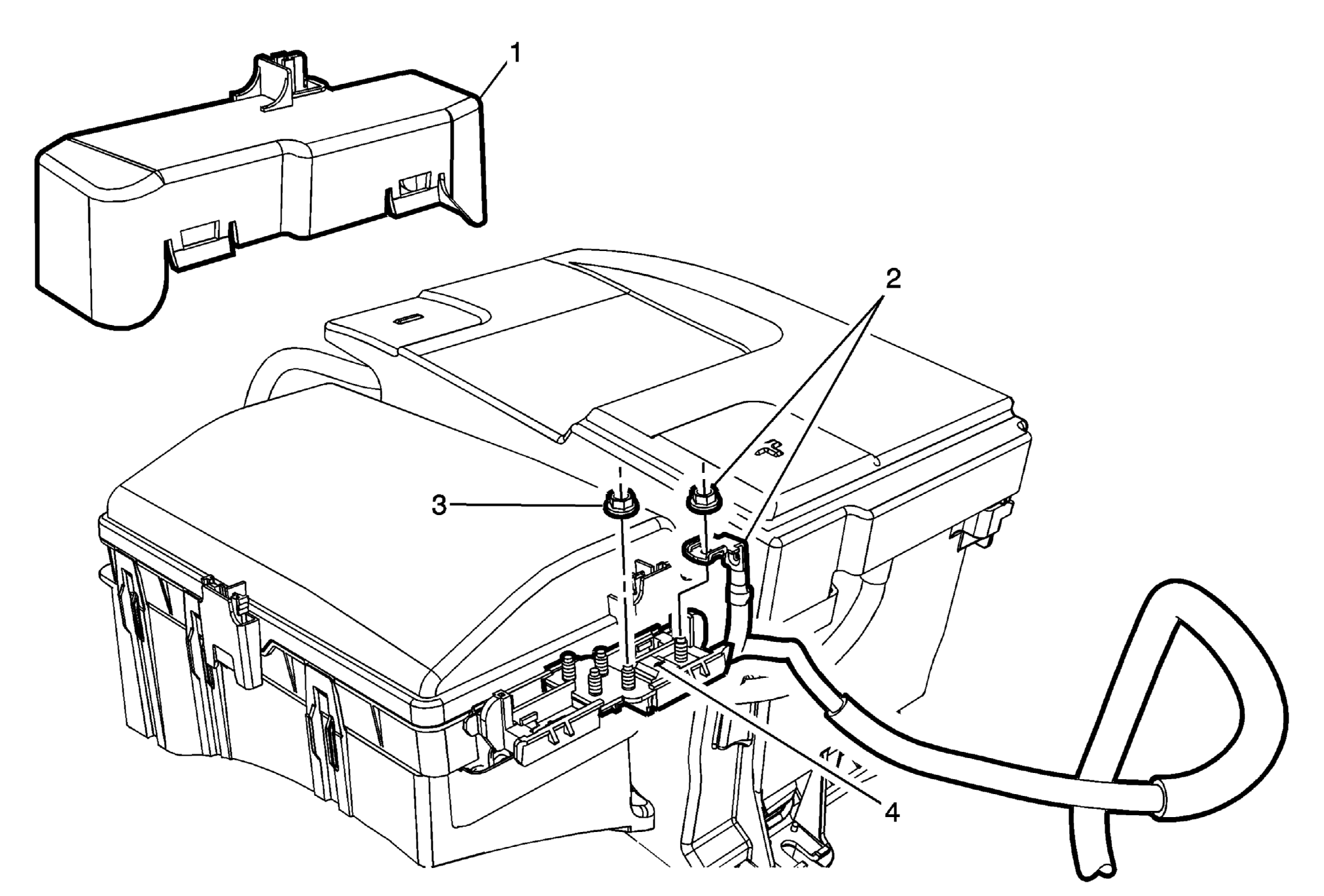

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . |
|
| 1 | Fuse Block Fuse Cover |
| 2 | Battery Positive Cable and Nut
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the battery positive cable(s) from the fuse. Tighten 4.7 (42 lb in) |
| 3 | Fuse Block Fuse Holder Nut - MIDI-Fuse Tighten 4.7 (42 lb in) |
| 4 | Fuse Block Fuse - MIDI-Fuse |
