Garage Door Opener

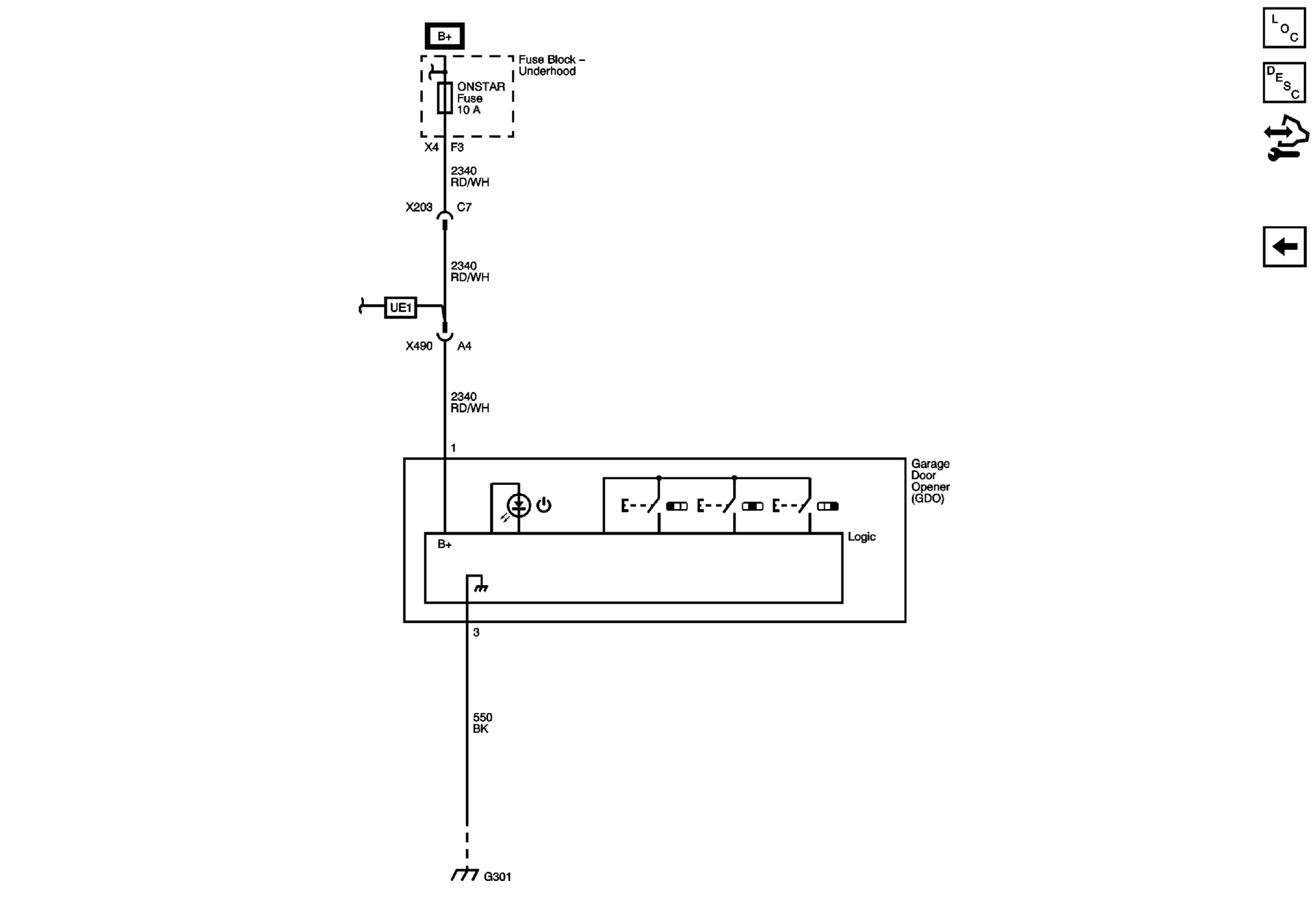

Fig 1: Garage Door Opener Wiring Schematic

GM2839616

Courtesy of GENERAL MOTORS COMPANY
