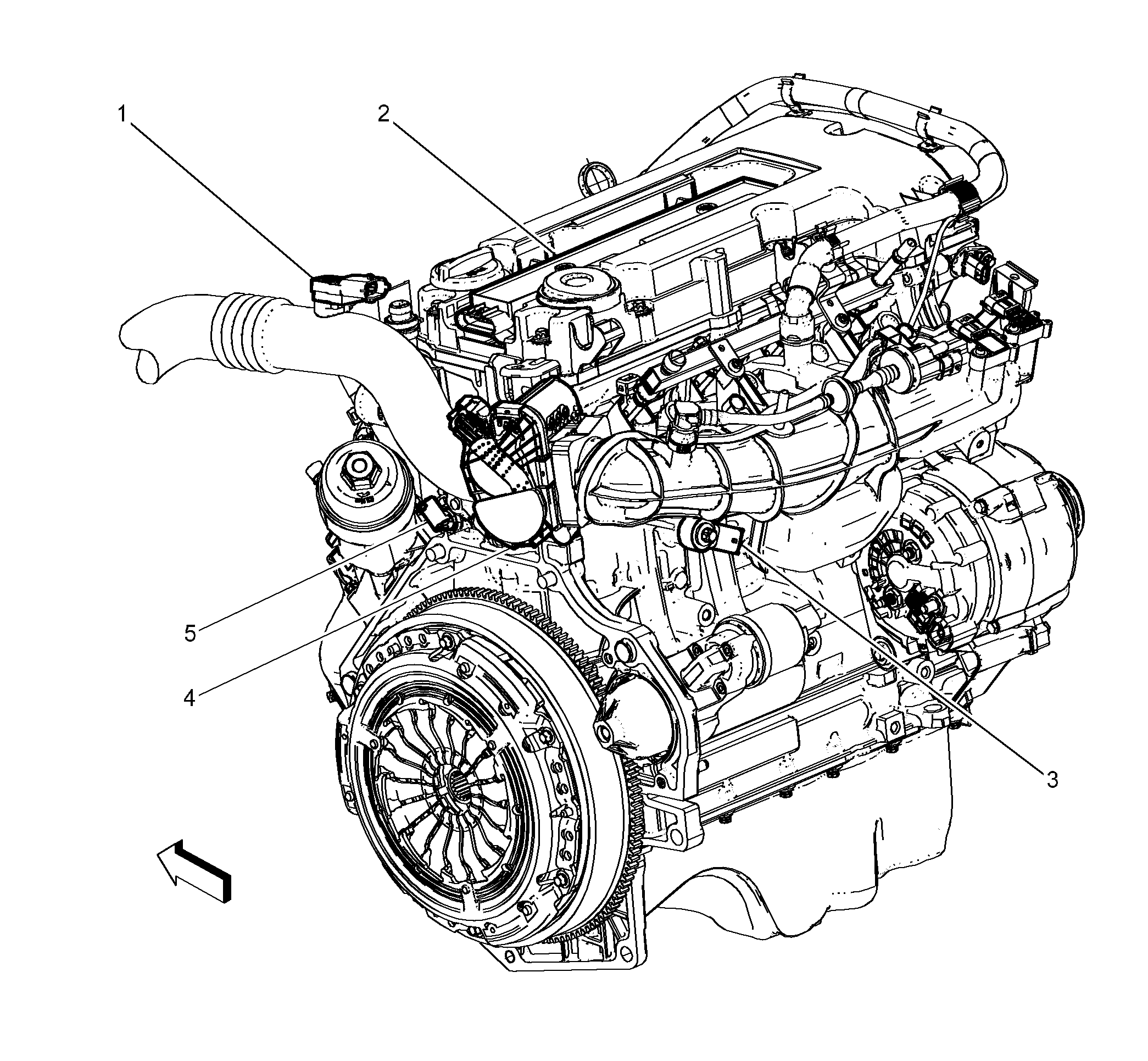

Left Rear of the Engine Components (LUV)
Left Rear of the Engine Components (LUV)
| Items |
|---|
| 1: B111B Turbocharger Boost/Intake Air Temperature Sensor (LUV) B111B Turbocharger Boost/Intake Air Temperature (LUV) |
| 2: K35 Ignition Coil Module K35 Ignition Coil Module |
| 3: B68 Knock Sensor B68 Knock Sensor (LUV)B68 Knock Sensor (LUW/LWE) |
| 4: Q38 Throttle Body Q38 Throttle Body |
| 5: B34A Engine Coolant Temperature Sensor 1 B34A Engine Coolant Temperature Sensor 1 (LUV)B34A Engine Coolant Temperature Sensor 1 (LUW/LWE) |
