High Speed GMLAN Wiring Schematics

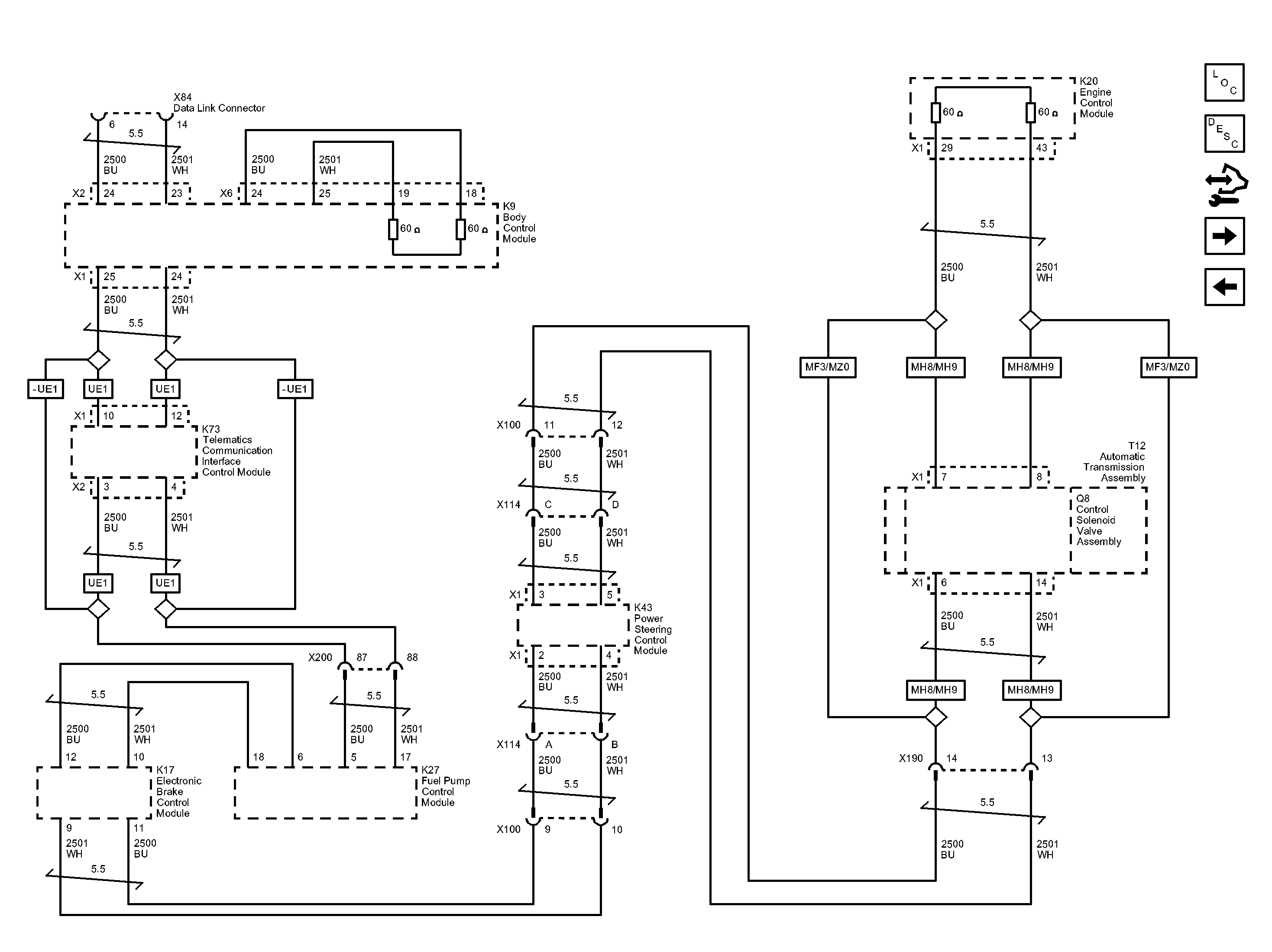

Fig 1: High Speed GMLAN Wiring Schematics

GM2852275

Courtesy of GENERAL MOTORS COMPANY
