Chassis Expansion Bus Wiring Schematics

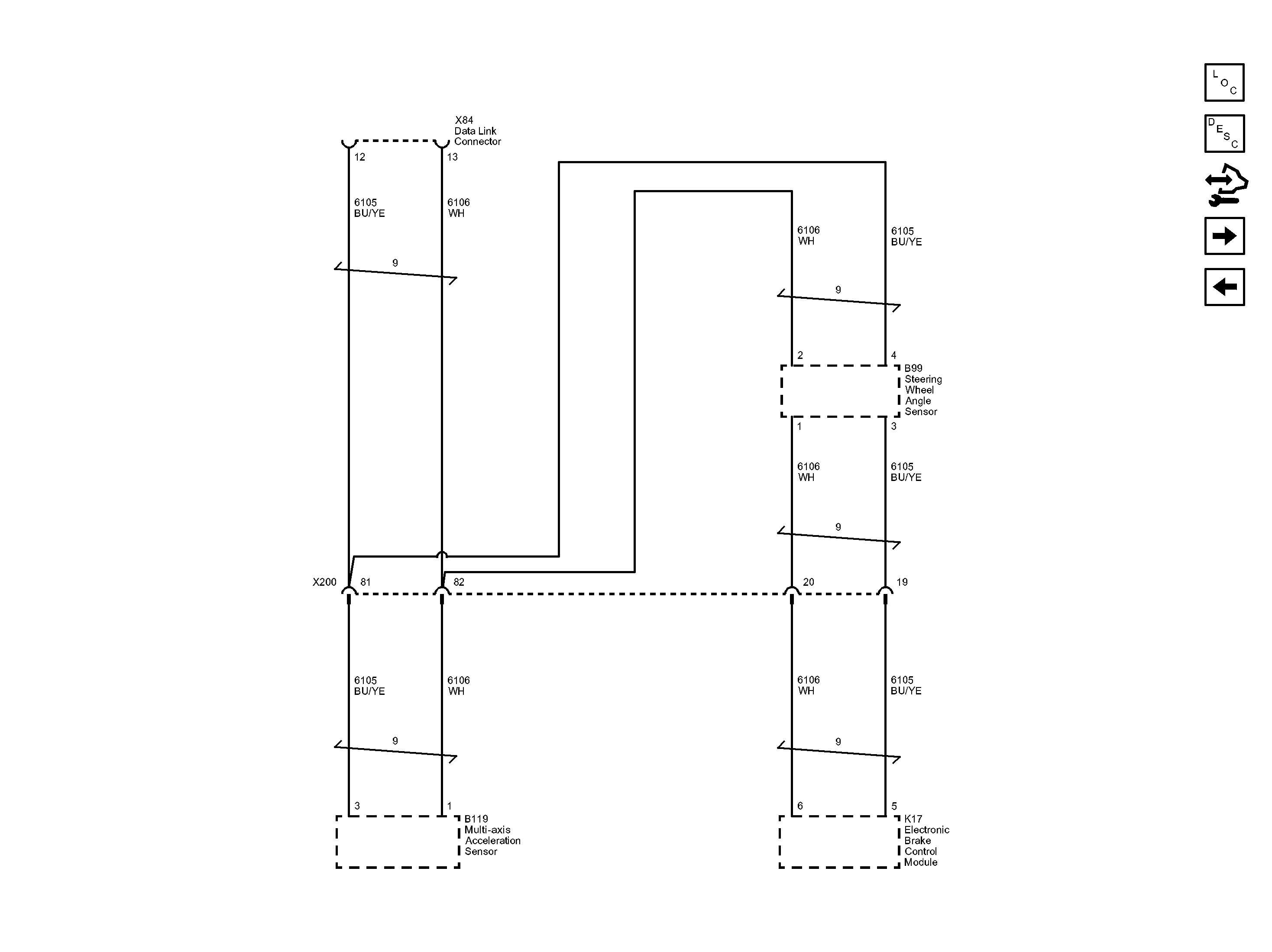

Fig 1: Chassis Expansion Bus Wiring Schematics

GM2852276

Courtesy of GENERAL MOTORS COMPANY
