Subsystem References (3 of 4) Wiring Schematics

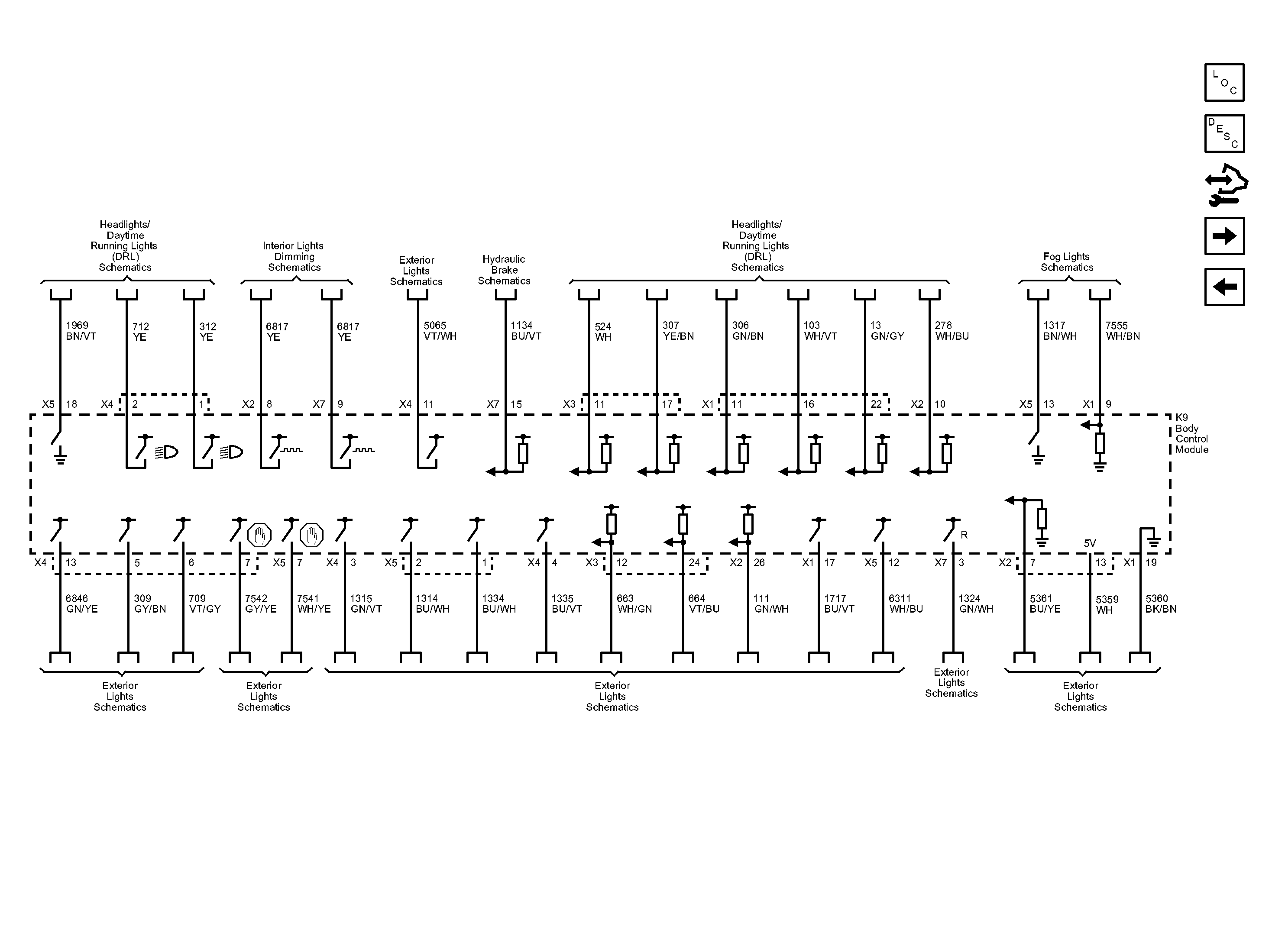

Fig 1: Subsystem References (3 of 4) Wiring Schematics

GM2852291

Courtesy of GENERAL MOTORS COMPANY
