Power, Ground, Serial Data, and Traction Control Switch

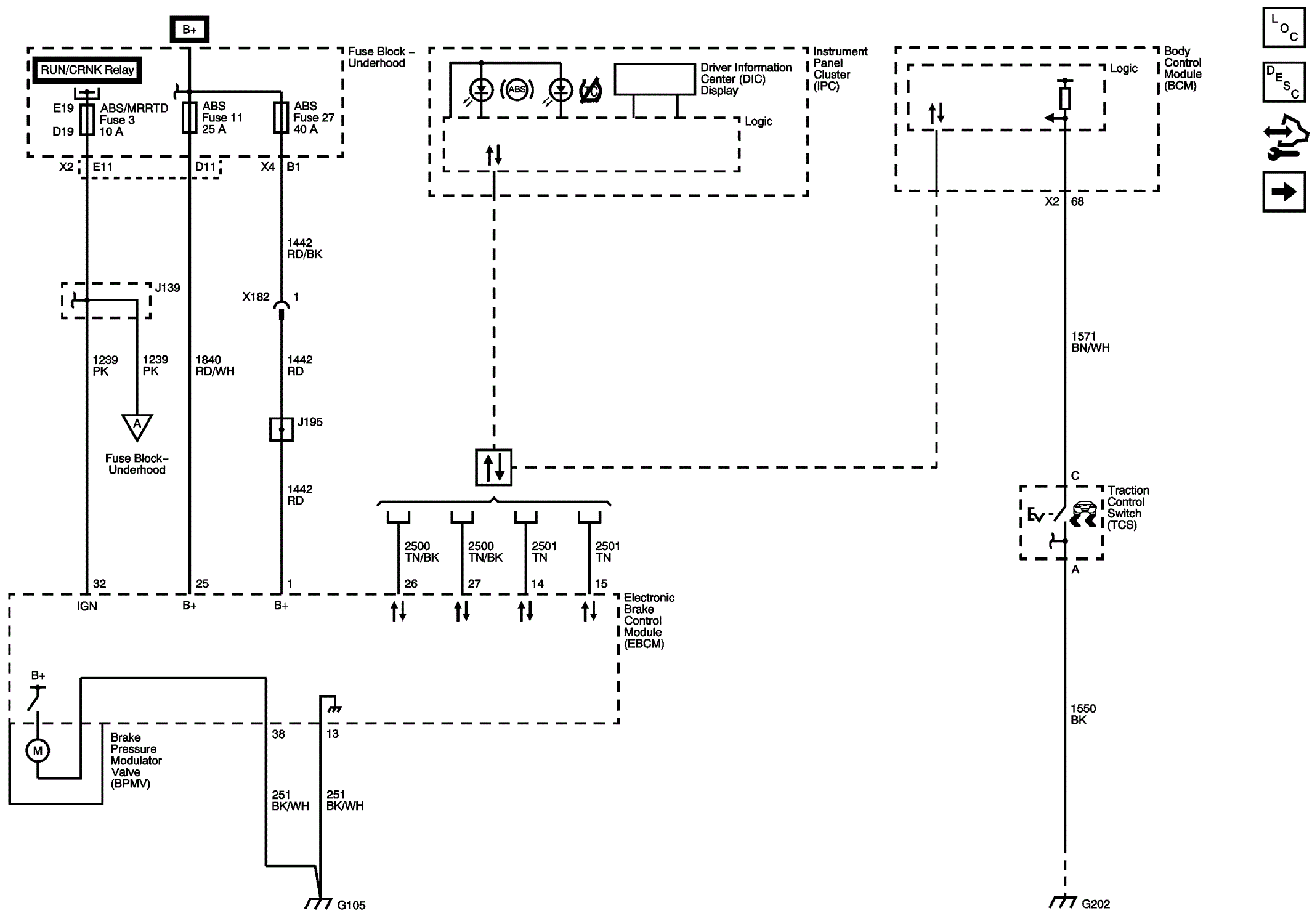

Fig 1: Power, Ground, Serial Data, and Traction Control Switch Wiring Schematic

GM2756631

Courtesy of GENERAL MOTORS COMPANY
