Moveable Window Wiring Schematics: Driver

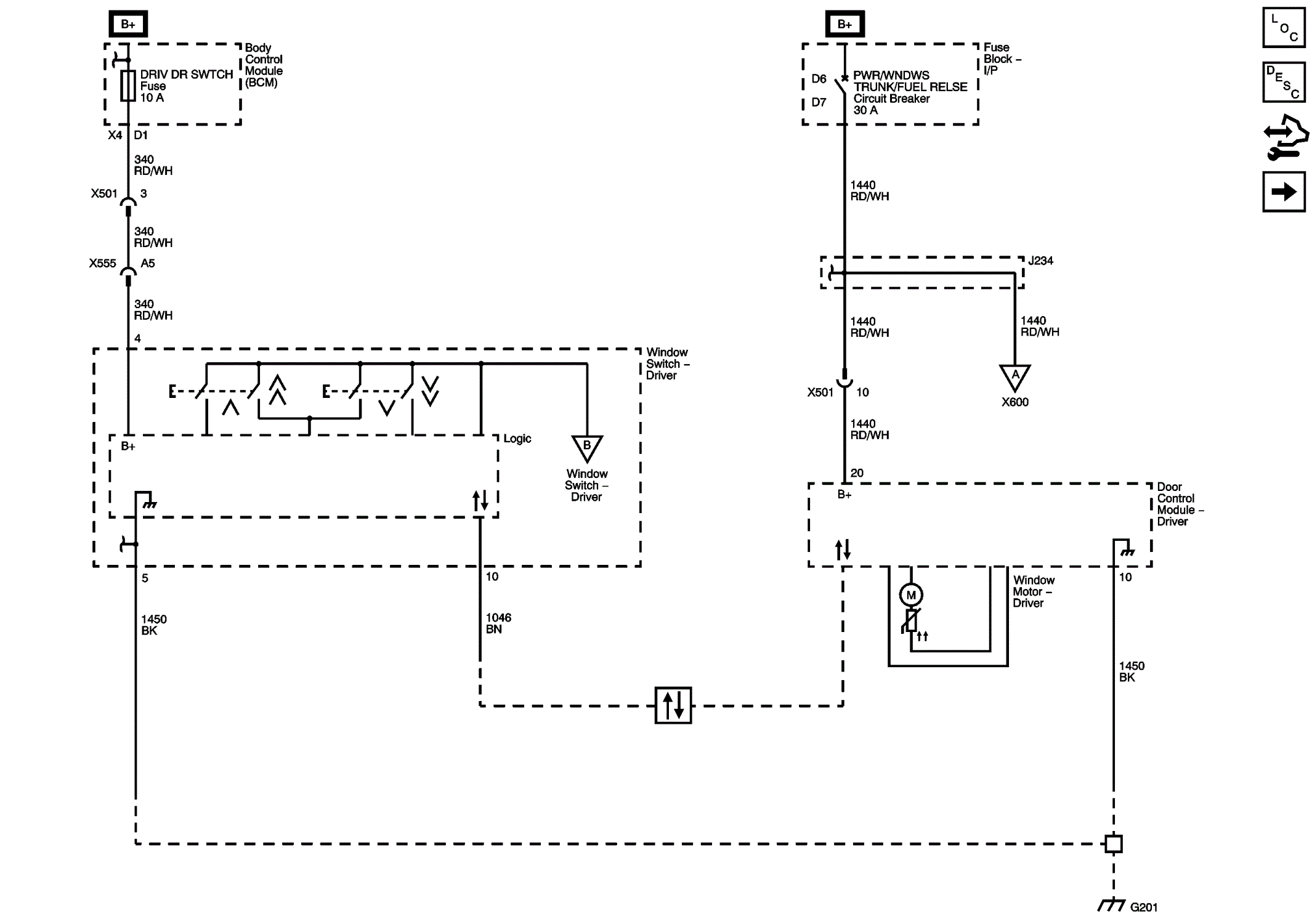

Fig 1: Driver Window Wiring Schematic

GM2756620

Courtesy of GENERAL MOTORS COMPANY
