Powertrain Expansion Bus

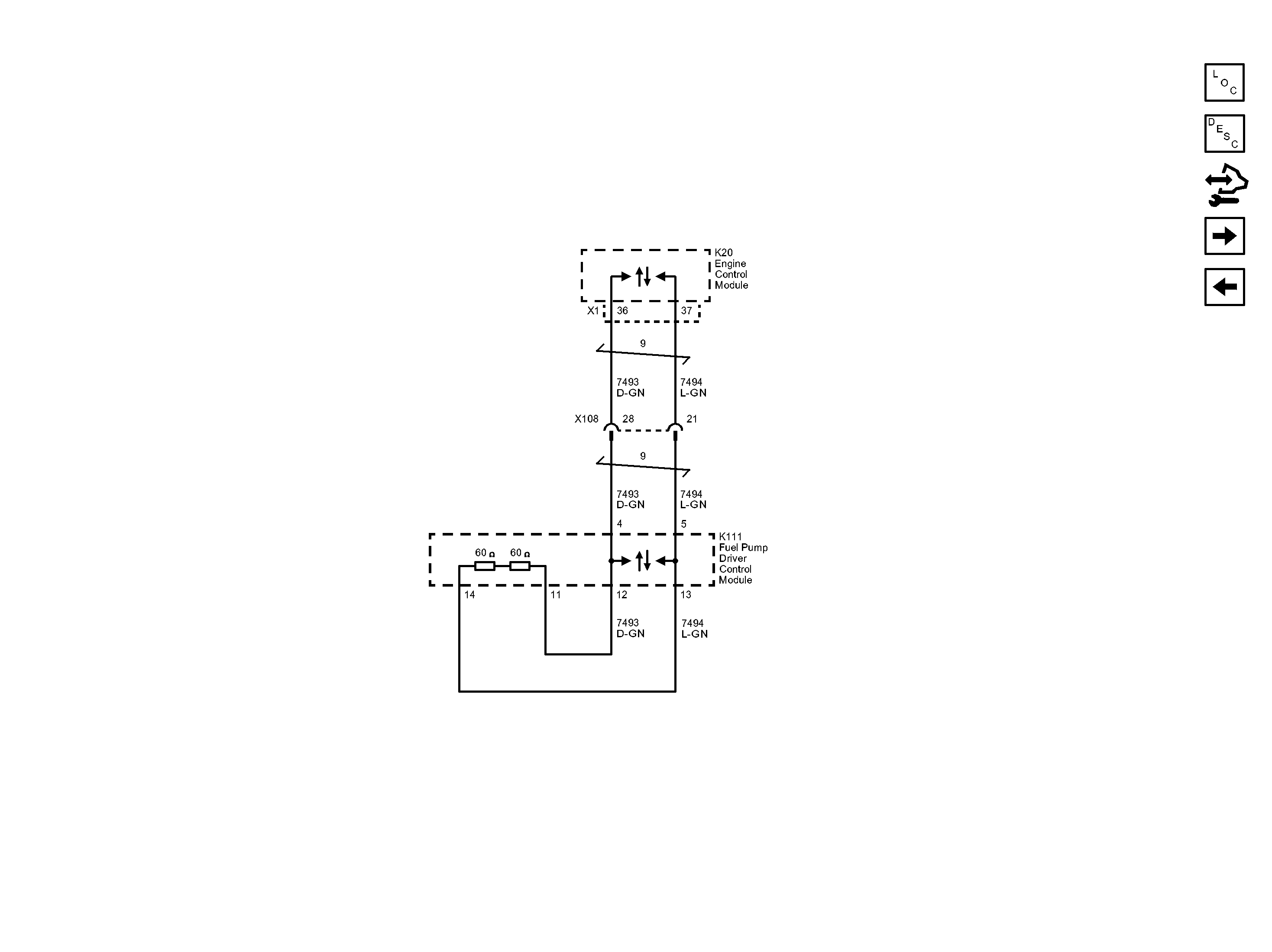

Fig 1: Powertrain Expansion Bus Wiring Schematic

GM3265124

Courtesy of GENERAL MOTORS COMPANY
