Module Power, Ground, Serial Data, and Instrument Panel Display

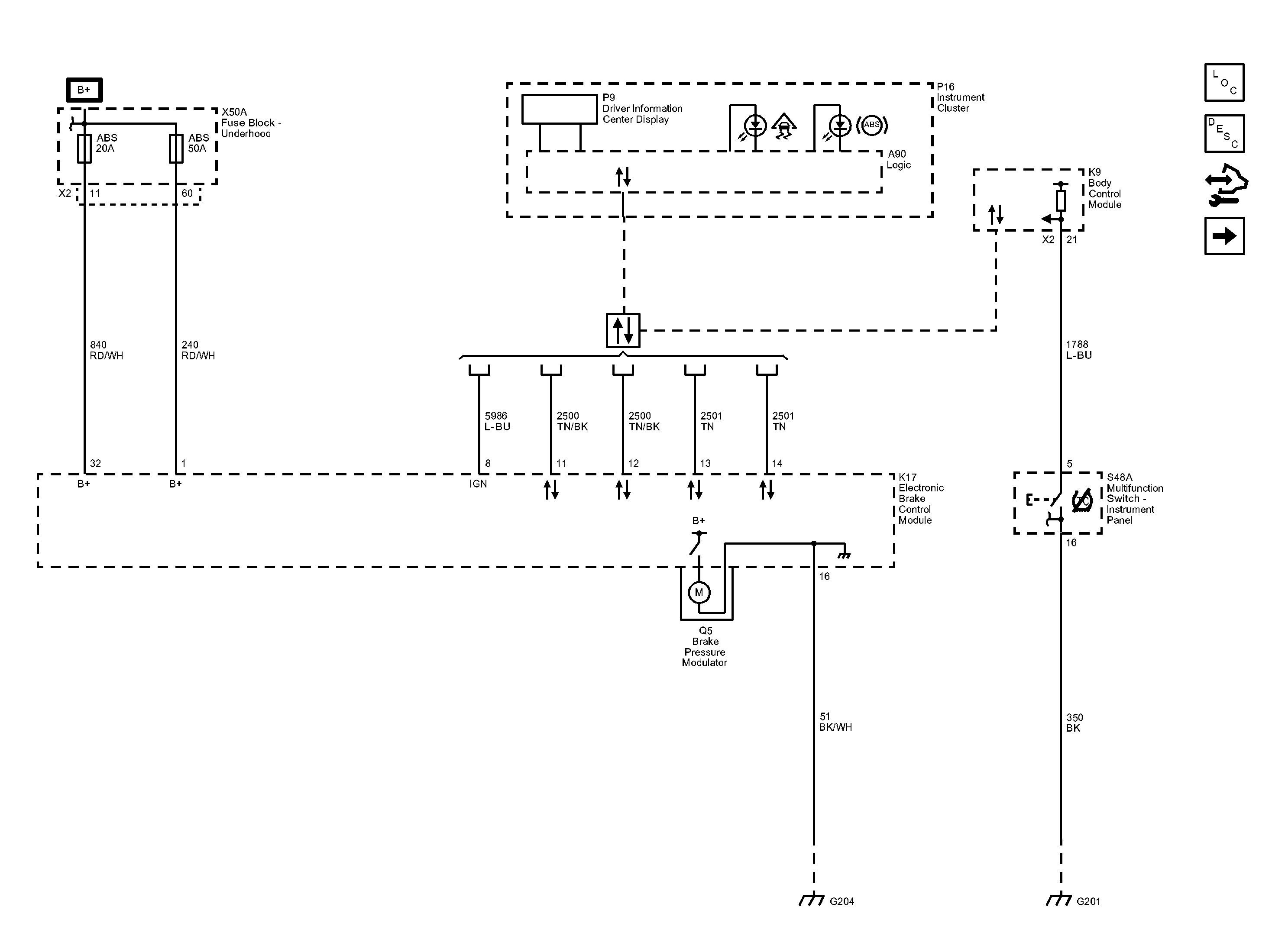

Fig 1: Module Power, Ground, Serial Data, And Instrument Panel Display Wiring Sschematic

GM2877151

Courtesy of GENERAL MOTORS COMPANY
