Driver Seat Components
WARNING: This page is about a different car, the 2011 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

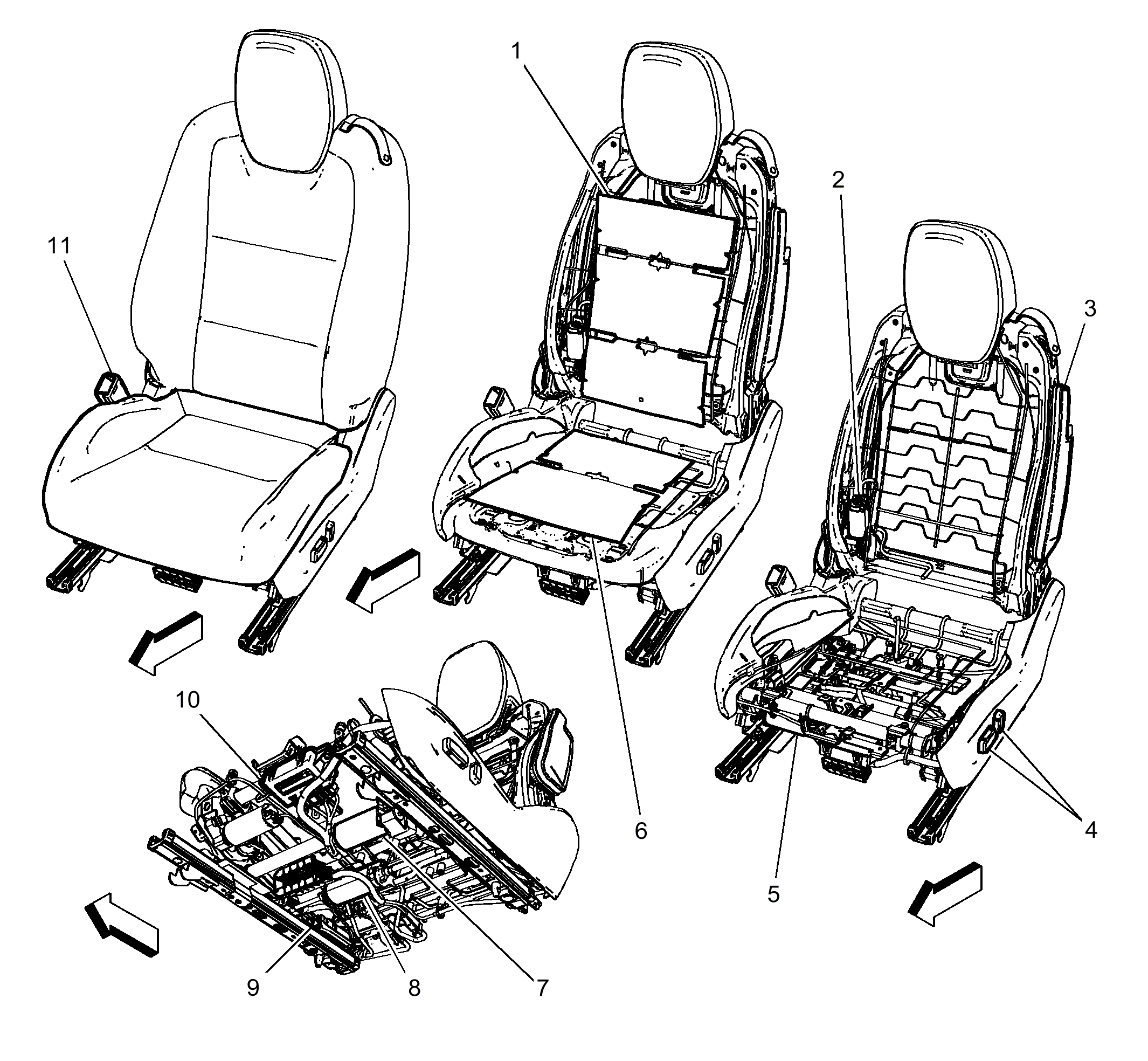

Driver Seat Components
| Component Name | Callout |
|---|---|
| Driver Seat Back Cushion | 1 |
| E14A Seat Heating Element - Driver Back (KA1) | 2 |
| M56D Seat Recline Motor - Driver | 3 |
| F106L Side Air Bag - Left | 4 |
| S64D Seat Adjuster Switch - Driver | 5 |
| M50D Seat Front Vertical Motor - Driver (AMM) | 6 |
| E14B Seat Heating Element - Driver Cushion (KA1) | 7 |
| M55D Seat Rear Vertical Motor - Driver (AMM) | 8 |
| M51D Seat Horizontal Motor - Driver (AMM) | 9 |
| B62D Seat Position Sensor - Driver | 10 |
| K29 Seat Heating Control Module (KA1) | 11 |
| Driver Seat Cushion | 12 |
| B88D Seat Belt Switch - Driver | 13 |
