High Speed GMLAN (2 of 2)

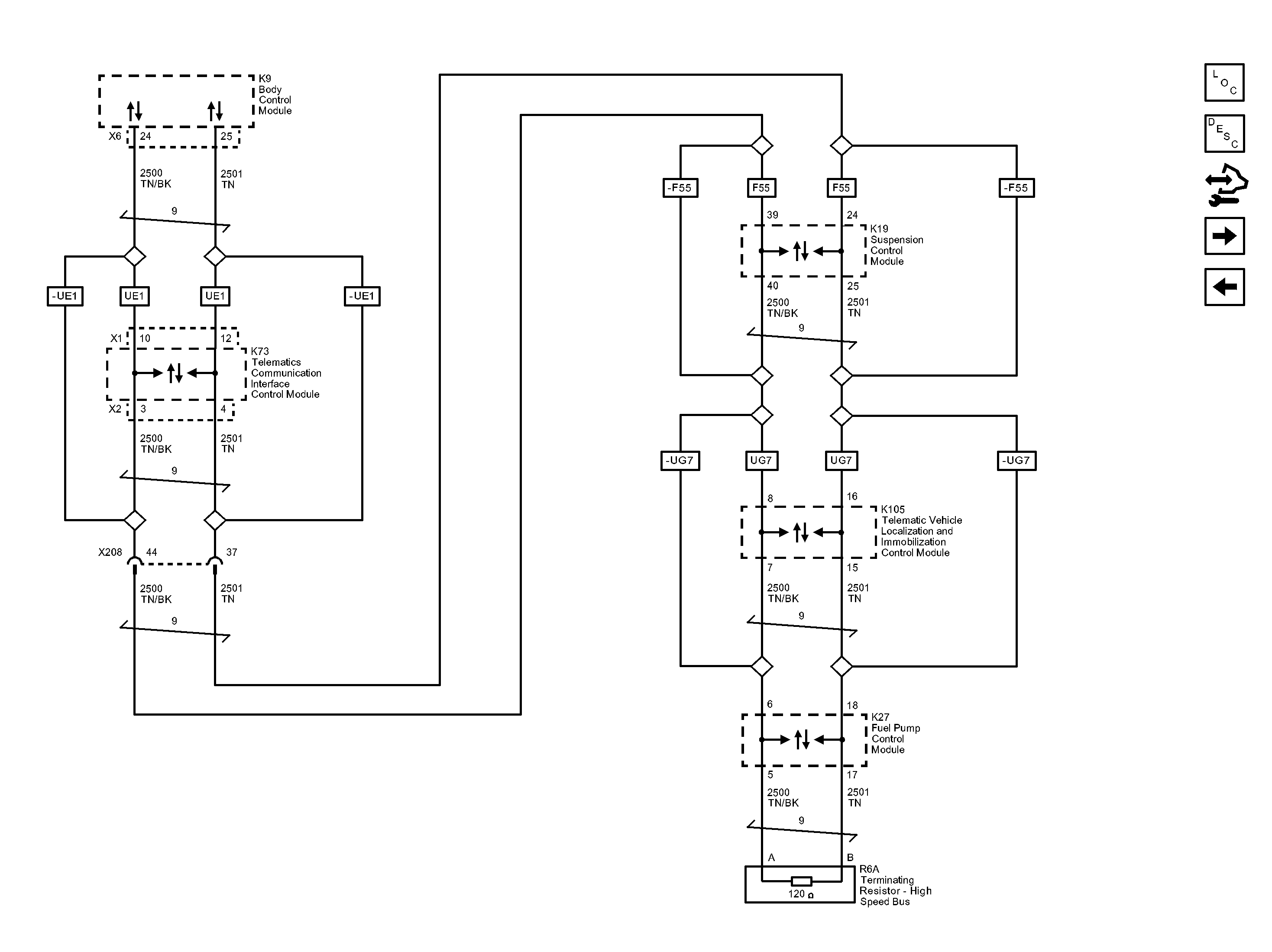

Fig 1: High Speed GMLAN (2 of 2) Wiring Schematic

GM3218913

Courtesy of GENERAL MOTORS COMPANY
