Power, Ground, and Subsystem References (1 of 3)

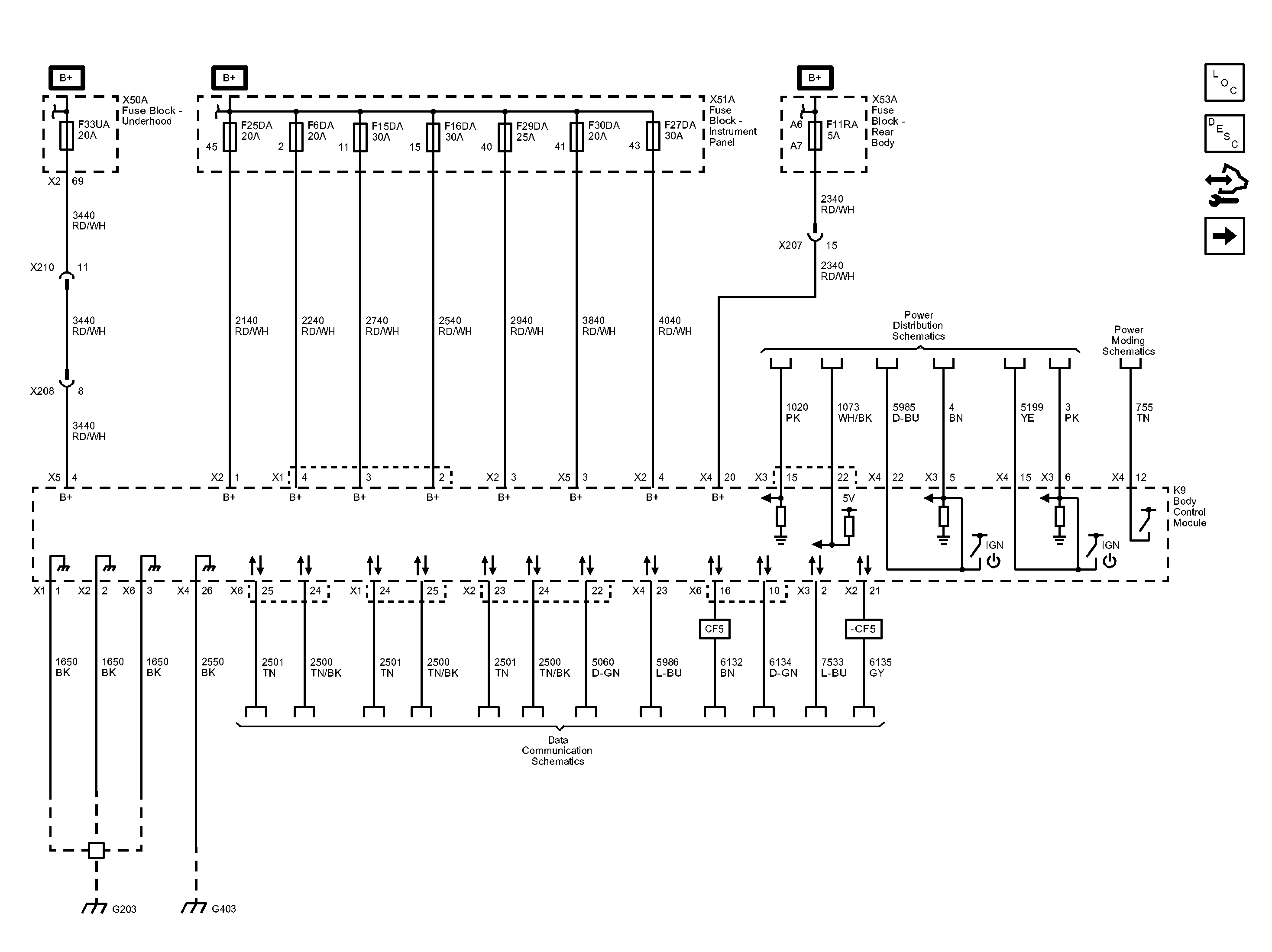

Fig 1: Power, Ground, and Subsystem References (1 of 3) Wiring Schematic

GM2785307

Courtesy of GENERAL MOTORS COMPANY
