Shoulder Belt Replacement - Rear
Shoulder Belt Replacement - Rear

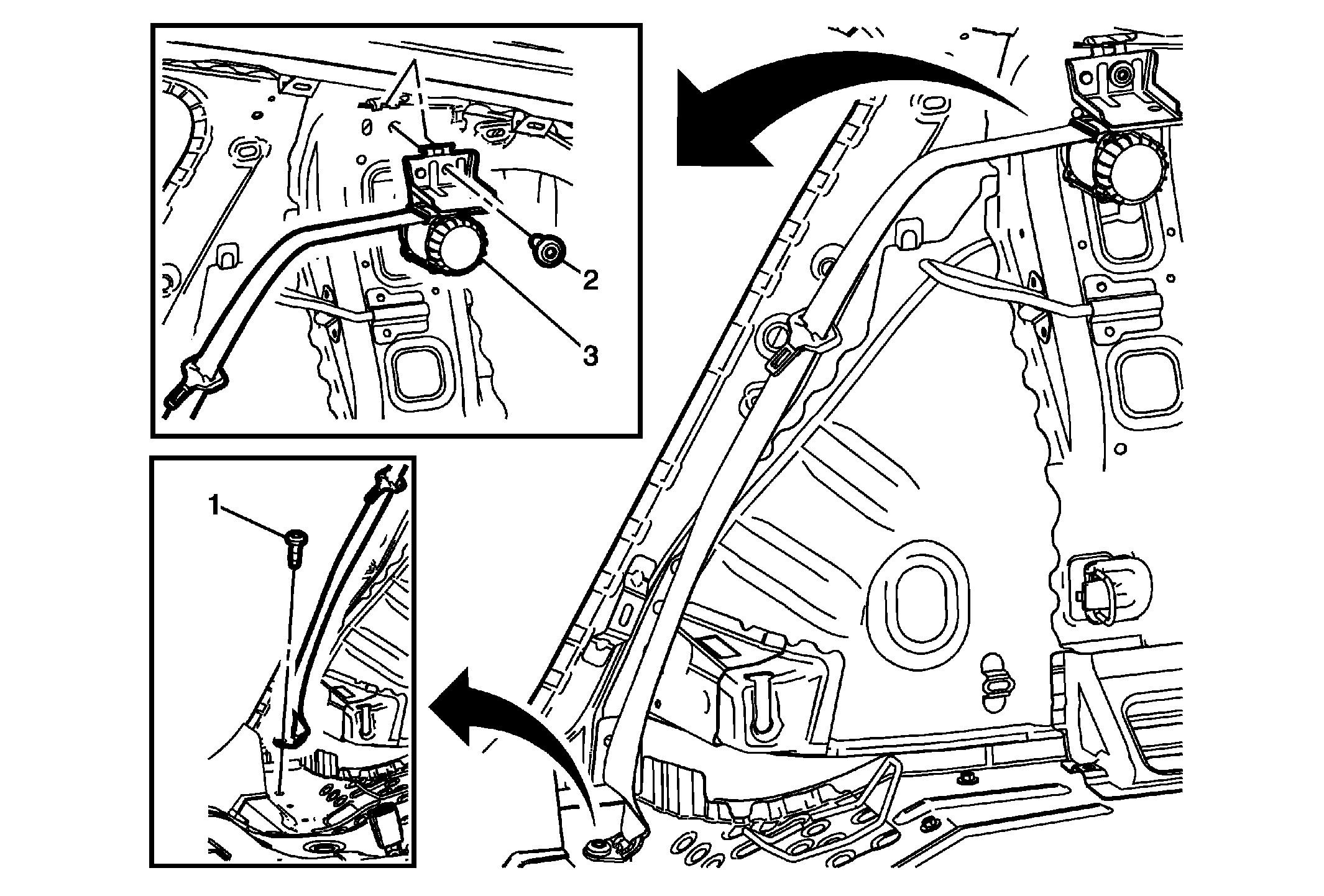

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the quarter inner trim finish panel. Refer to Quarter Inner Trim Finish Panel Replacement . |
|
| 1 | Rear Seat Shoulder Belt Fastener
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 2 | Rear Seat Shoulder Belt Bracket Fastener Tighten 45 N.m (33 lb ft) |
| 3 | Rear Seat Shoulder Belt Assembly |
