Passenger Compartment/Roof Component Views
>>
Driver Seat Components
Driver Seat Components
Driver Seat Components
Component Name
Callout
K29 Seat Heating Control Module
1
F113D Seat Belt Anchor Pretensioner - Driver
2
E14A Seat Heating Element - Driver Back
3
F106L Side Air Bag - Left
4
E14B Seat Heating Element - Driver Cushion
5
B88D Seat Belt Switch - Driver (Part of Buckle)
6

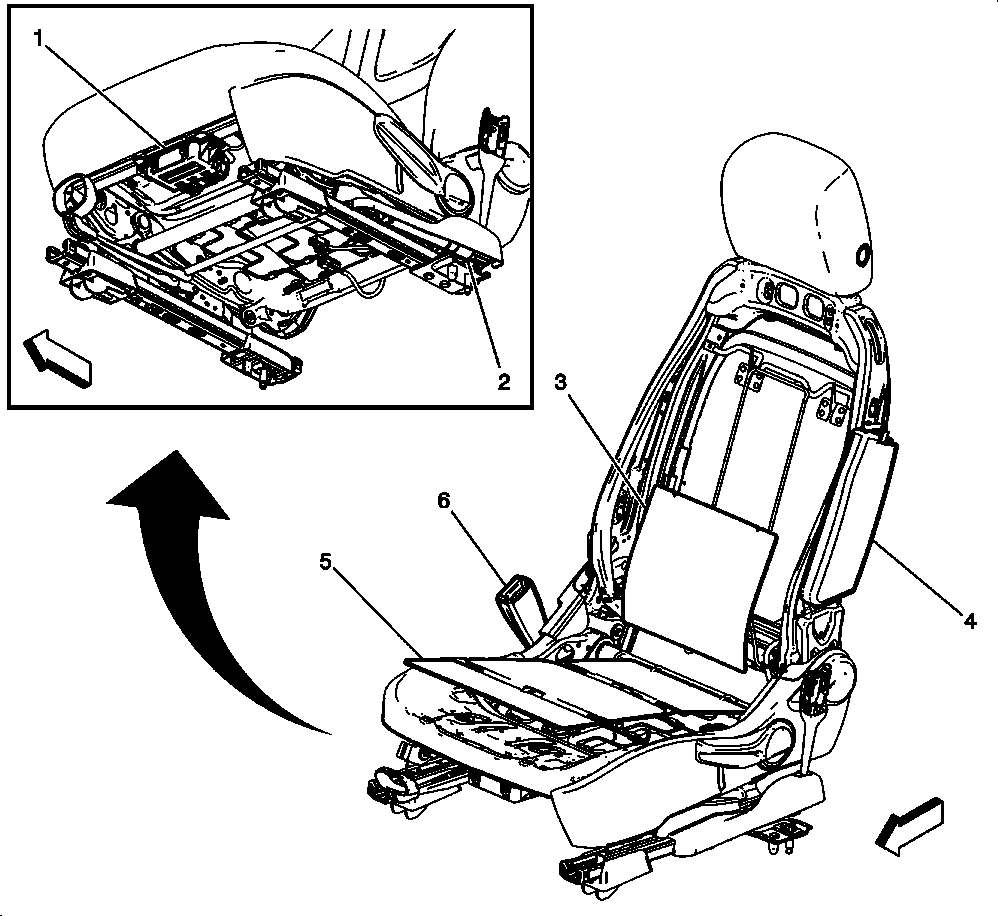

Fig 1: Driver Seat Components
Courtesy of GENERAL MOTORS COMPANY
