Air Conditioning Refrigerant Temperature Sensor Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

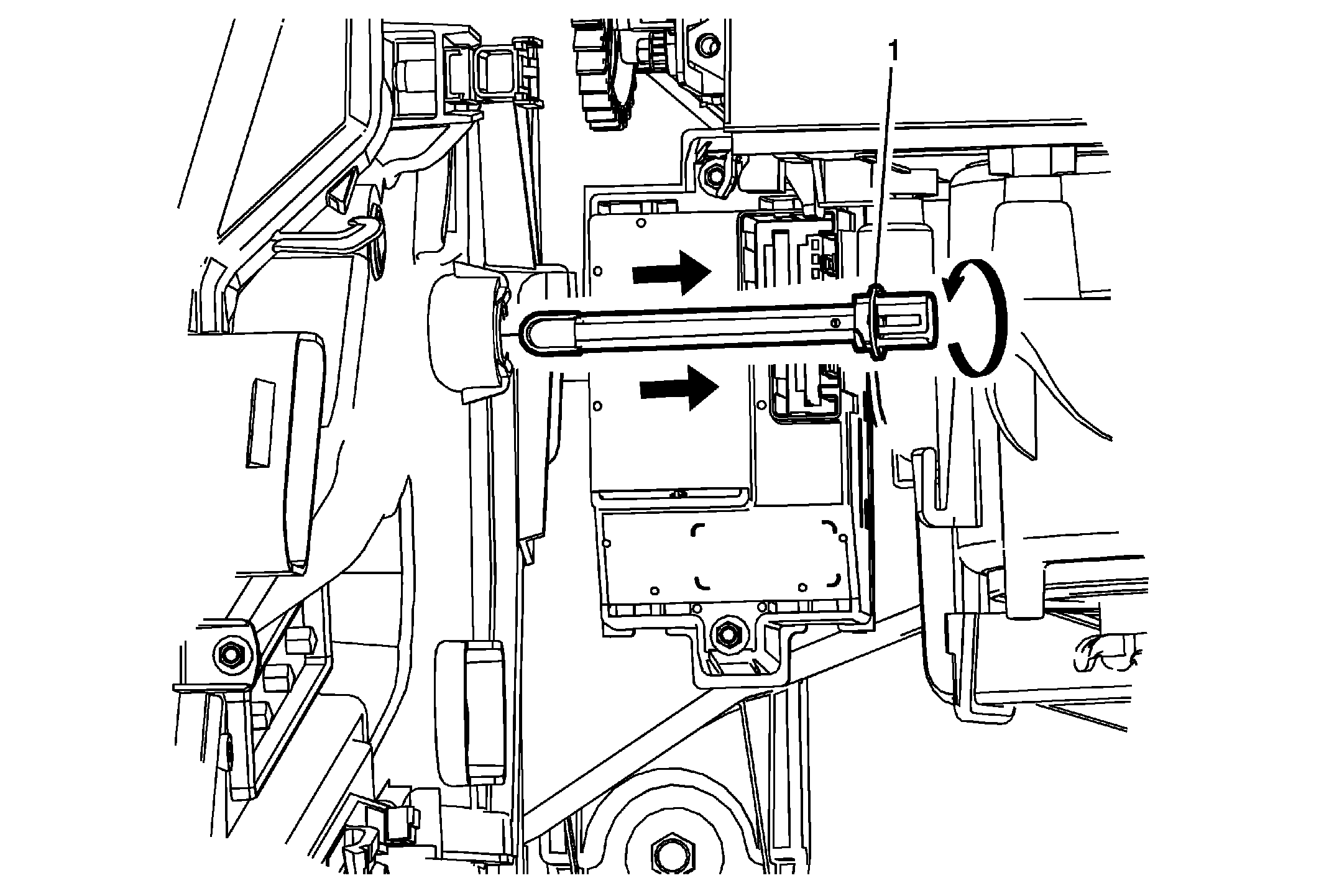

Fig 1: Air Conditioning Refrigerant Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the floor air outlet duct - right side. Refer to Floor Front Air Outlet Duct Replacement - Right Side .
1	Air Conditioning Refrigerant Temperature Sensor Procedure Disconnect the refrigerant temperature sensor electrical connector. Twist and pull the refrigerant temperature sensor from the HVAC module assembly.

Callout

Component Name

Preliminary Procedure:
Remove the floor air outlet duct - right side. Refer to Floor Front Air Outlet Duct Replacement - Right Side .

Air Conditioning Refrigerant Temperature Sensor

Procedure

Disconnect the refrigerant temperature sensor electrical connector.
Twist and pull the refrigerant temperature sensor from the HVAC module assembly.
