Door Lock/Indicator Wiring Schematics

WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

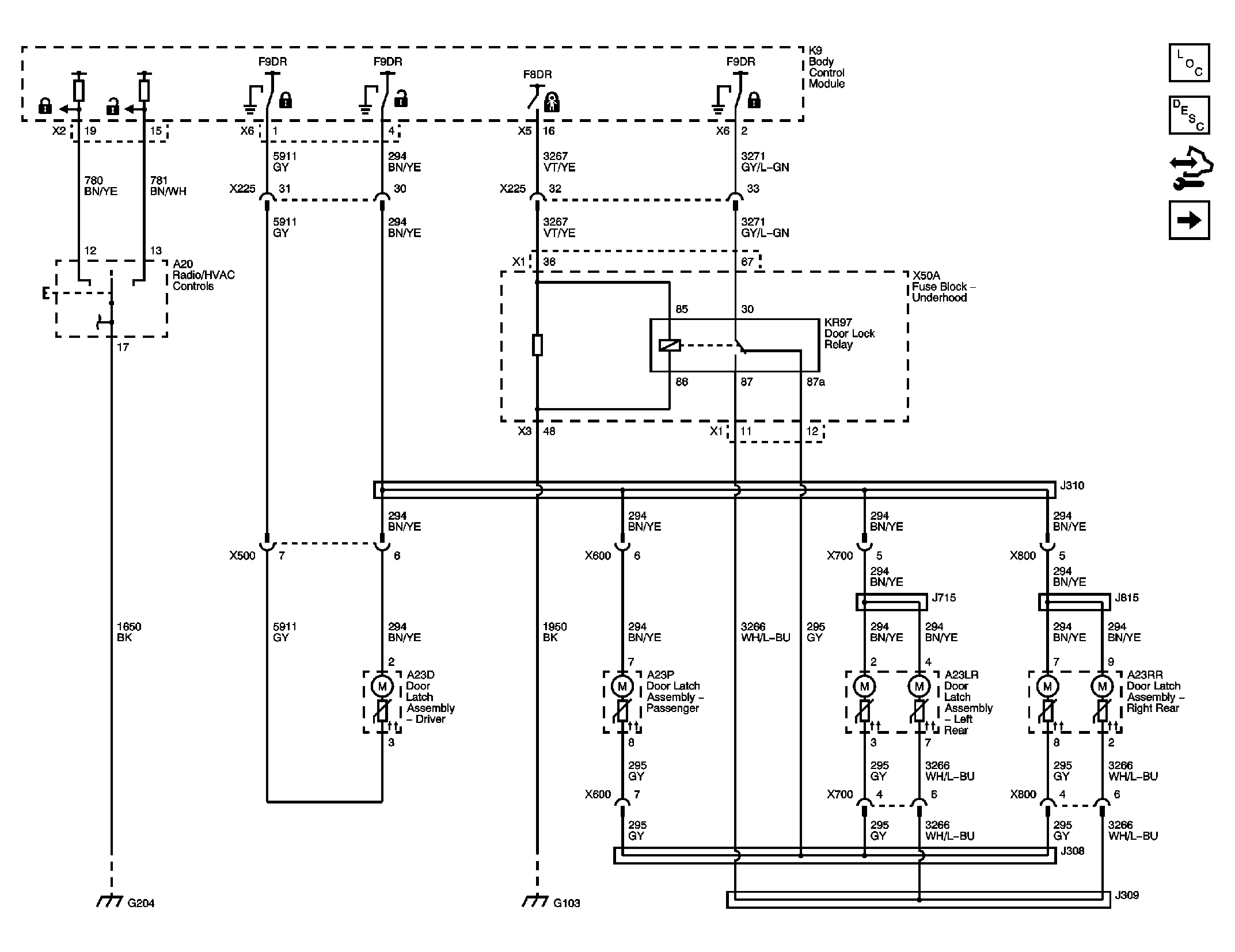

Fig 1: Door Locks Wiring Schematic
GM2489892Courtesy of GENERAL MOTORS CORP.
Fig 2: Door Ajar Switches Wiring Schematic
GM2531187Courtesy of GENERAL MOTORS CORP.
