Accessory DC Power Control Module Cooling Air Duct Replacement
WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

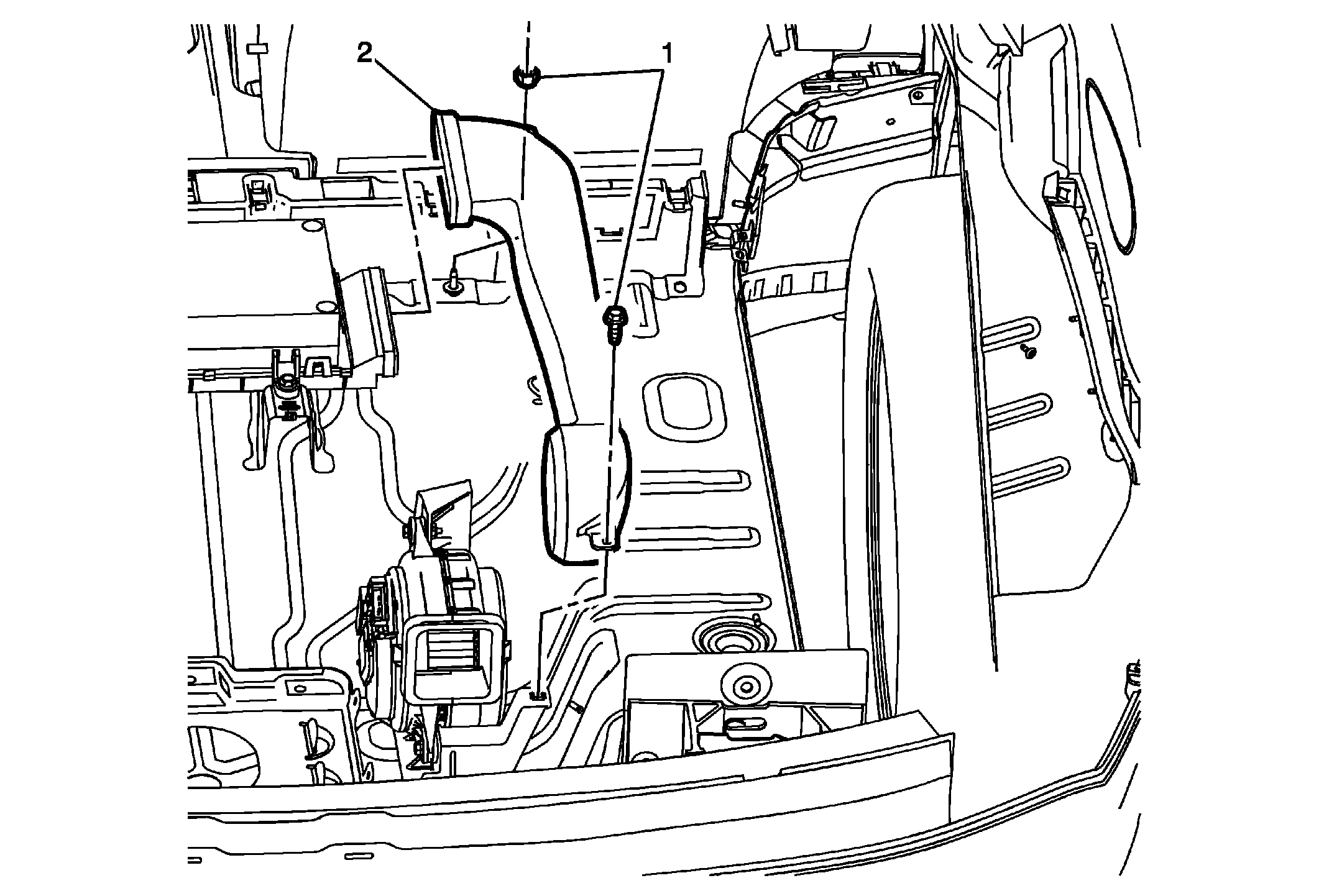

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the floor stowage trim compartment. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement . |
|
| 1 | Accessory DC Power Control Module Cooling Air Duct Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 1.5 N.m (13 lb in) |
| 2 | Accessory DC Power Control Module Cooling Air Duct |
