Ignition and Start Switch Replacement

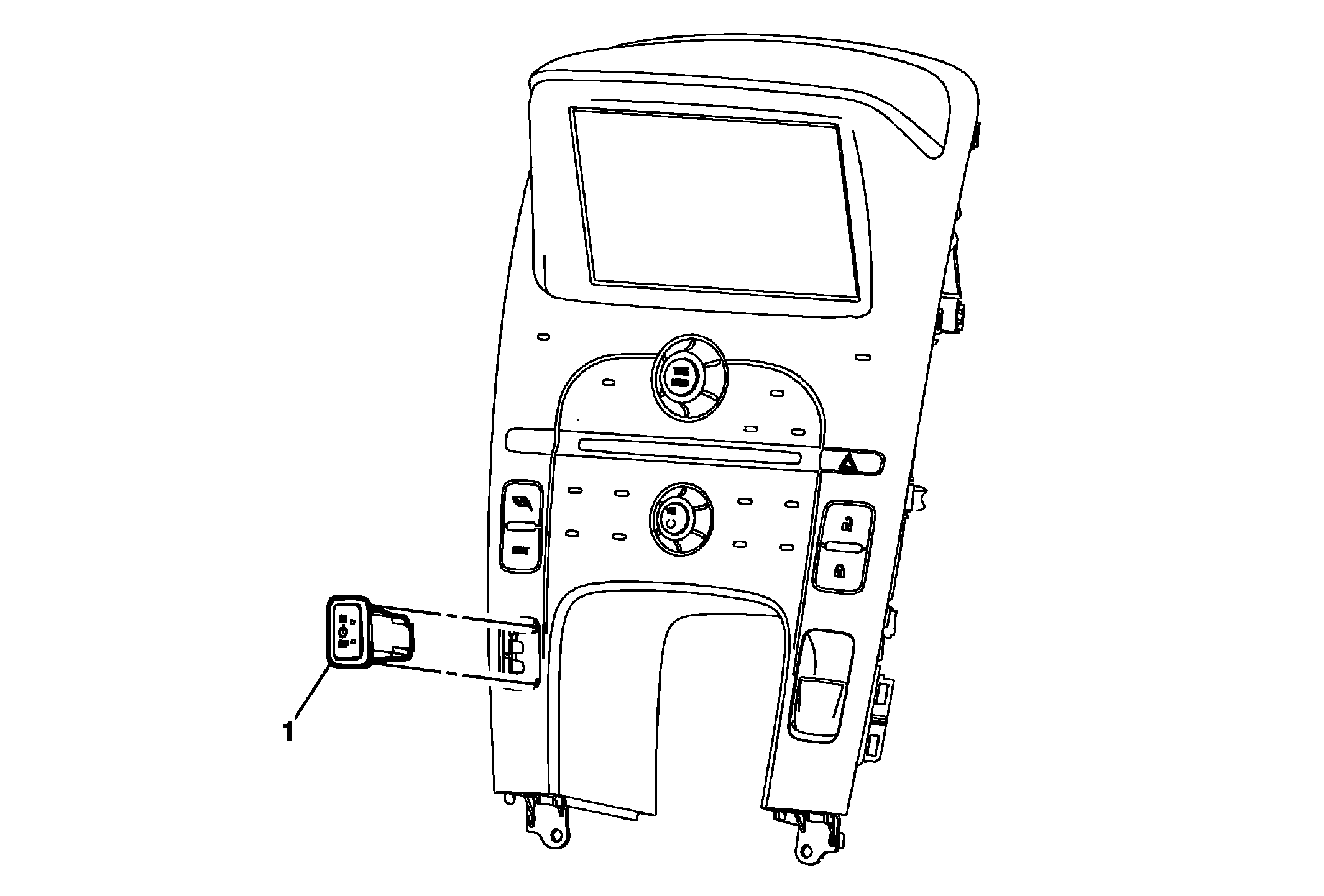

Fig 1: Ignition And Start Switch
GM2383814Courtesy of GENERAL MOTORS COMPANY
Ignition and Start Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the radio control assembly. Refer to Radio Control Assembly Replacement .
1 Ignition and Start Switch

Procedure

  1. Disconnect electrical connection.
  2. Depress tabs on switch and remove from the panel.
