Ignition Lock Key Transmitter Antenna Replacement - Rear Bumper Fascia
Ignition Lock Key Transmitter Antenna Replacement - Rear Bumper Fascia

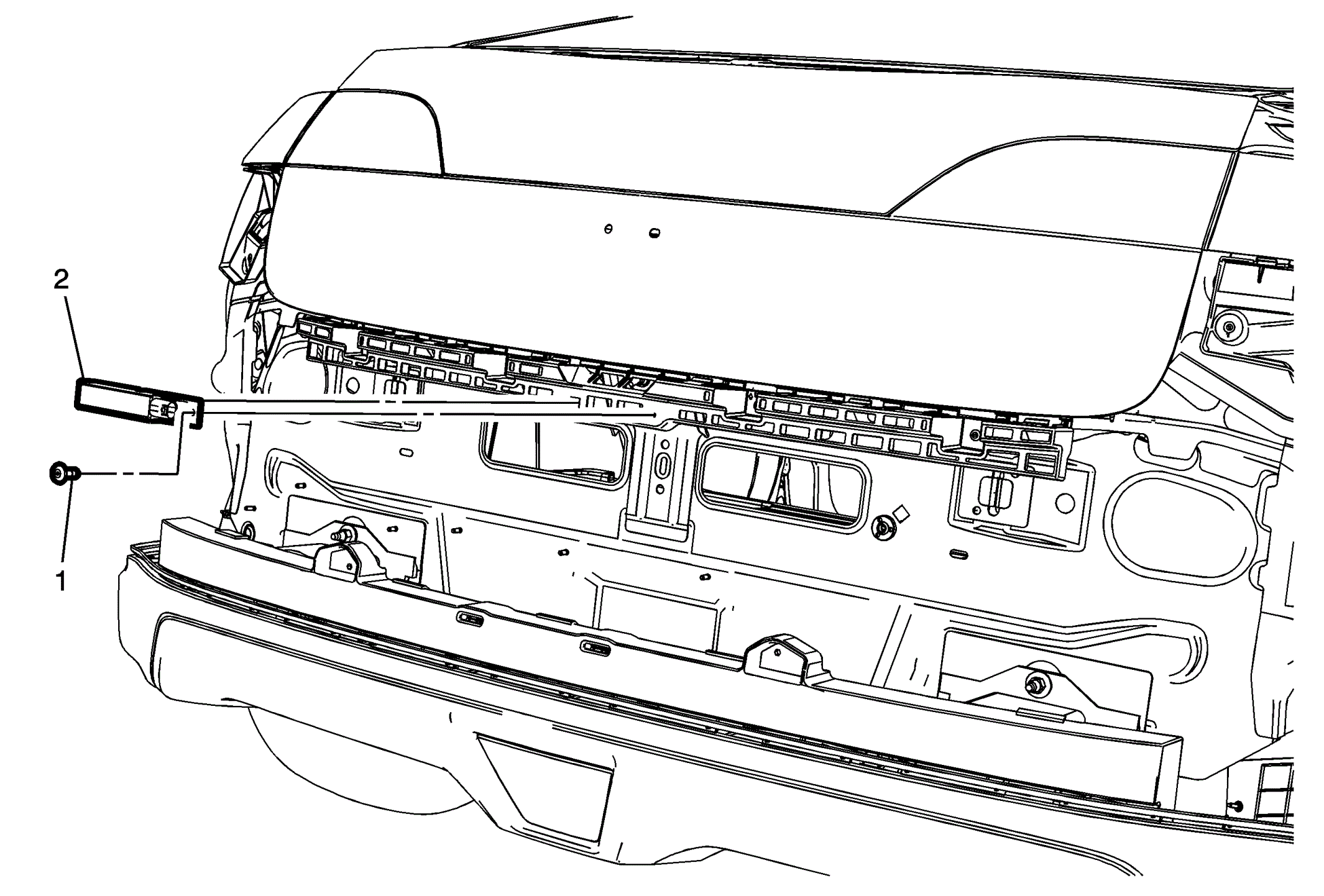

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the rear bumper upper fascia. Refer to Rear Bumper Upper Fascia Replacement . |
|
| 1 | Ignition Lock Key Transmitter Antenna Fastener
CAUTION:
Refer to Fastener Caution . |
| 2 | Ignition Lock Key Transmitter Antenna - Rear Bumper Fascia Procedure Disconnect the electrical connector. |
