Sun Load Temperature and Daytime Running Lamp Ambient Light Sensor Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

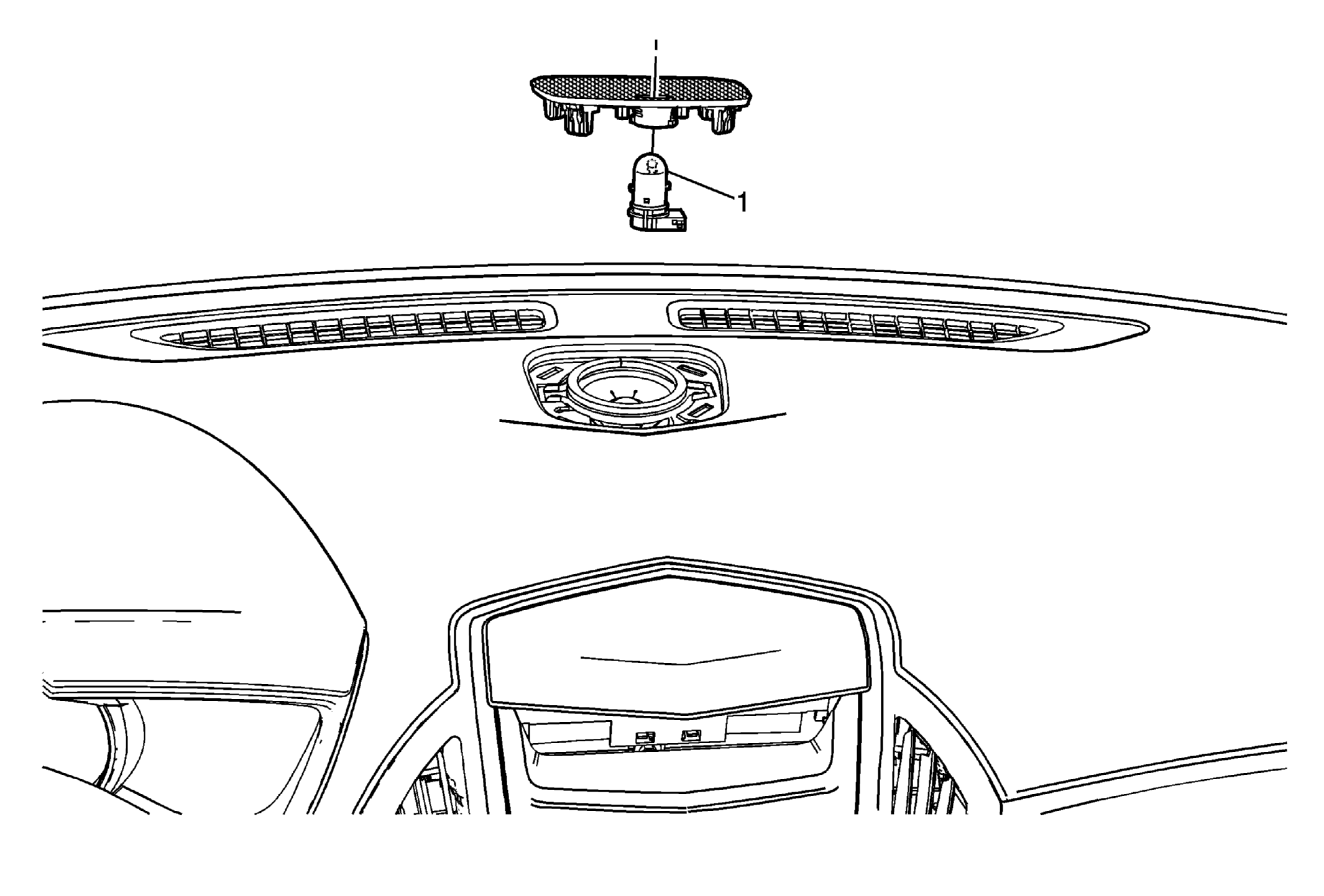

Fig 1: Identifying Sun Load Temperature & Daytime Running Lamp Ambient Light Sensor
GM2221264Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the radio front speaker grille. Refer to Radio Front Speaker Grille Replacement .
1 Sunload Temperature and Daytime Running Lamp and Ambient Light Sensor

Procedure

  1. Twist and pull up to remove.
  2. Disconnect electrical connector.
