Windshield Washer Nozzle Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

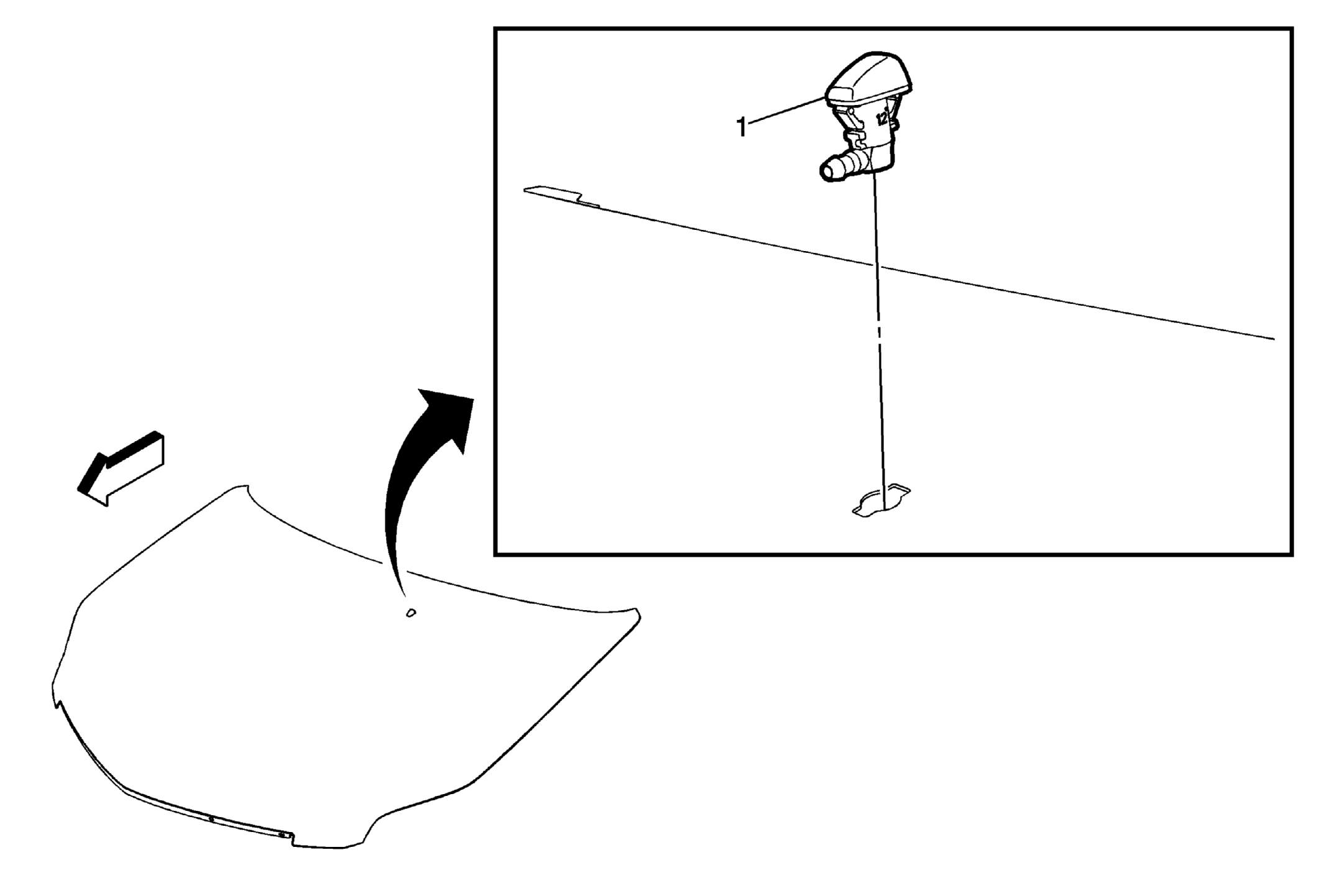

Fig 1: Identifying Windshield Washer Nozzle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the hood insulator. Refer to Hood Insulator Replacement . Disconnect the windshield washer hose from the washer nozzles.
1	Windshield Washer Nozzle (Qty: 2) Procedure Pinch the rear retainer on the washer nozzle first followed by the front retainer. Push the nozzles outward from the hood in order to remove.

Callout

Component Name

Preliminary Procedures

Remove the hood insulator. Refer to Hood Insulator Replacement .
Disconnect the windshield washer hose from the washer nozzles.

Windshield Washer Nozzle (Qty: 2)

Procedure

Pinch the rear retainer on the washer nozzle first followed by the front retainer.
Push the nozzles outward from the hood in order to remove.
