Outside Rearview Mirror Housing Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

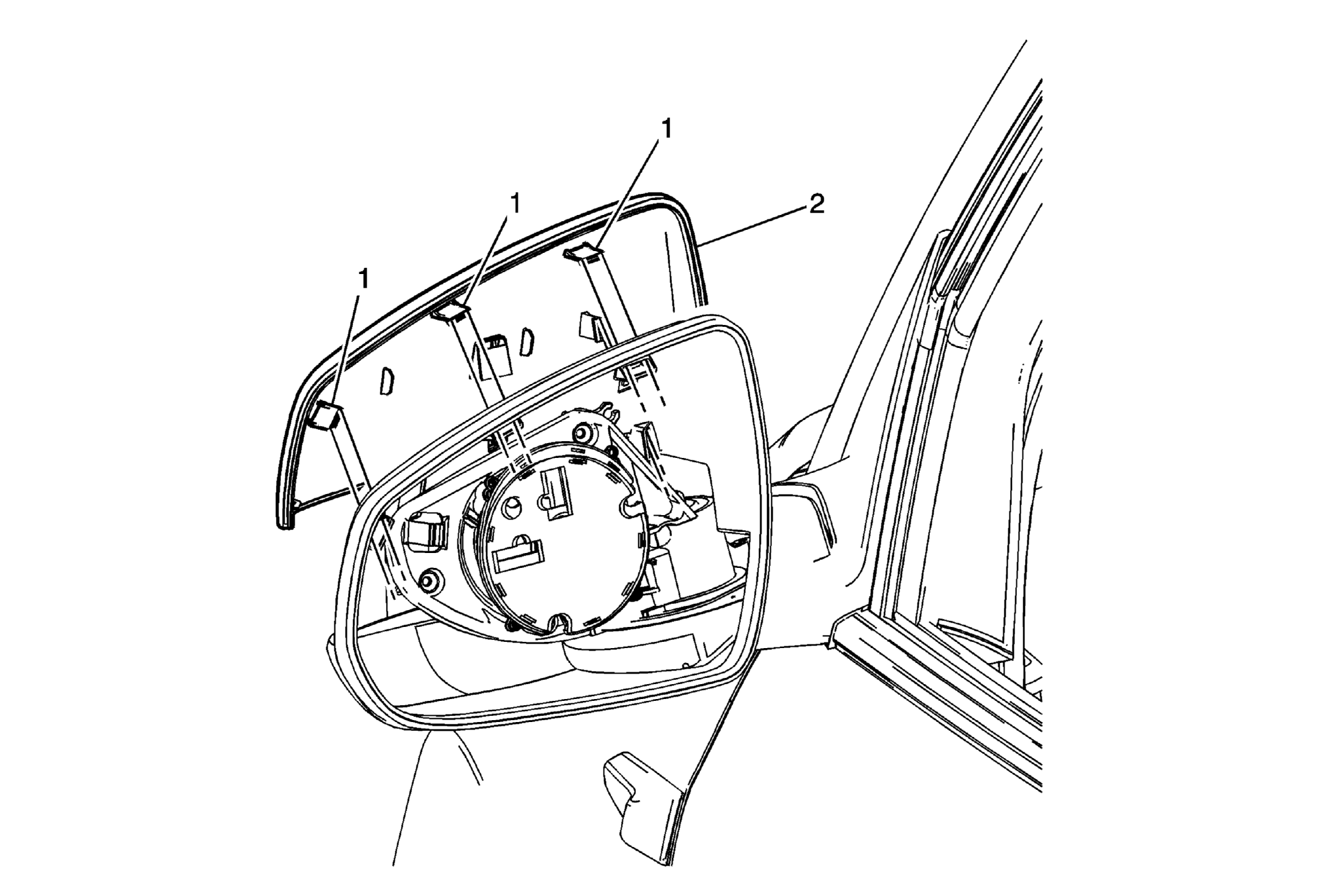

Fig 1: View Of Outside Rearview Mirror Housing
GM2371394Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedures:
Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement .
1 Outside Rearview Mirror Housing Retainers (Qty: 6)
Tip:  Push the housing tabs upward releasing the housing cover from the mirror.
2 Outside Rearview Mirror Housing
