Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

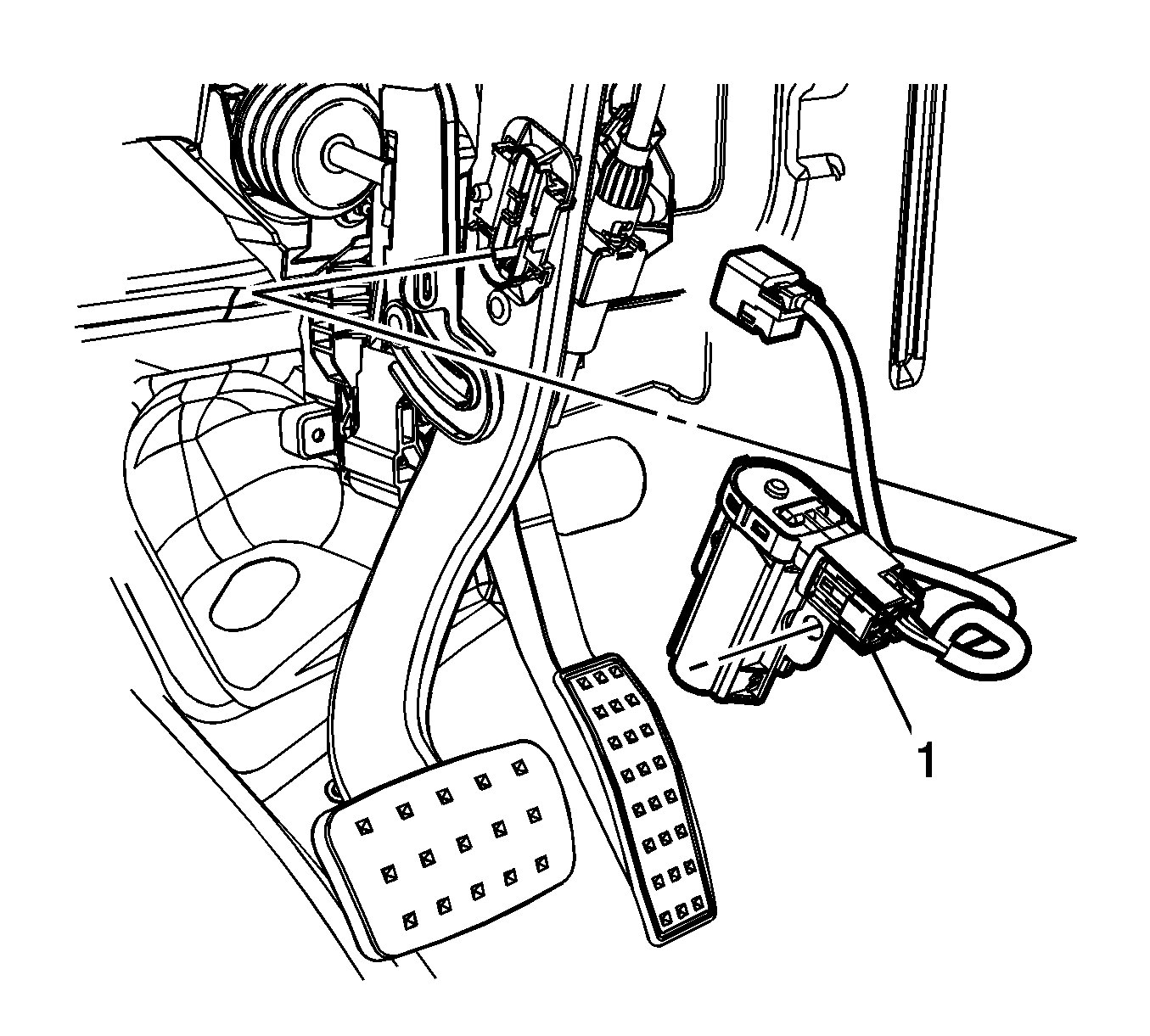

    Fig 1: View Of Brake & Accelerator Pedal Position Sensor
    GM2219305Courtesy of GENERAL MOTORS CORP.
  1. Install the brake and accelerator pedal position sensor (1) to the bracket on the brake pedal arm.
  2. Ensure the locking tabs on the brake and accelerator pedal position sensor bracket are firmly engaged on the sensor.
  3. Calibrate the adjustable pedal system. Refer to Adjustable Pedal System Calibration .
  4. Install the driver knee bolster panel. Refer to Driver Knee Bolster Panel Replacement .
