Tail Lamp Replacement (Traverse)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

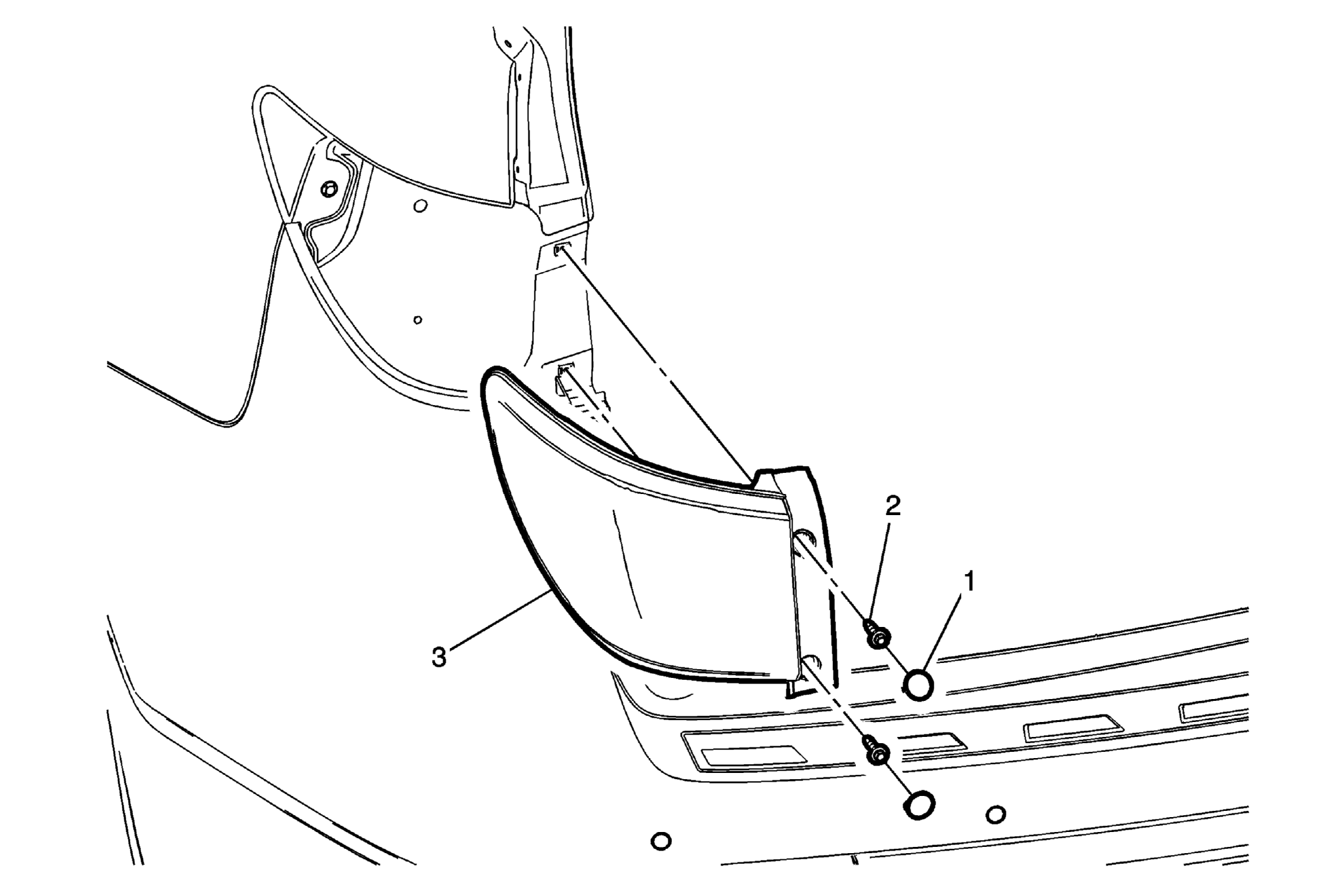

Fig 1: Tail Lamp (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open the liftgate.
1	Tail Lamp Access Hole Cover (Qty: 2) Procedure Use a small plastic flat bladed tool to disengage.
2	Tail Lamp Bolt (Qty: 2) CAUTION: Refer to Fastener Caution .
3	Tail Lamp Procedure Grasp the forward outer edge of the tail lamp and with a quick pull rearward disengage the retainer from the quarter out panel. Pull the tail lamp from the body pillar outer lower panel. Disconnect the electrical connector.
