Backup Lamp Applique Replacement (Traverse)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

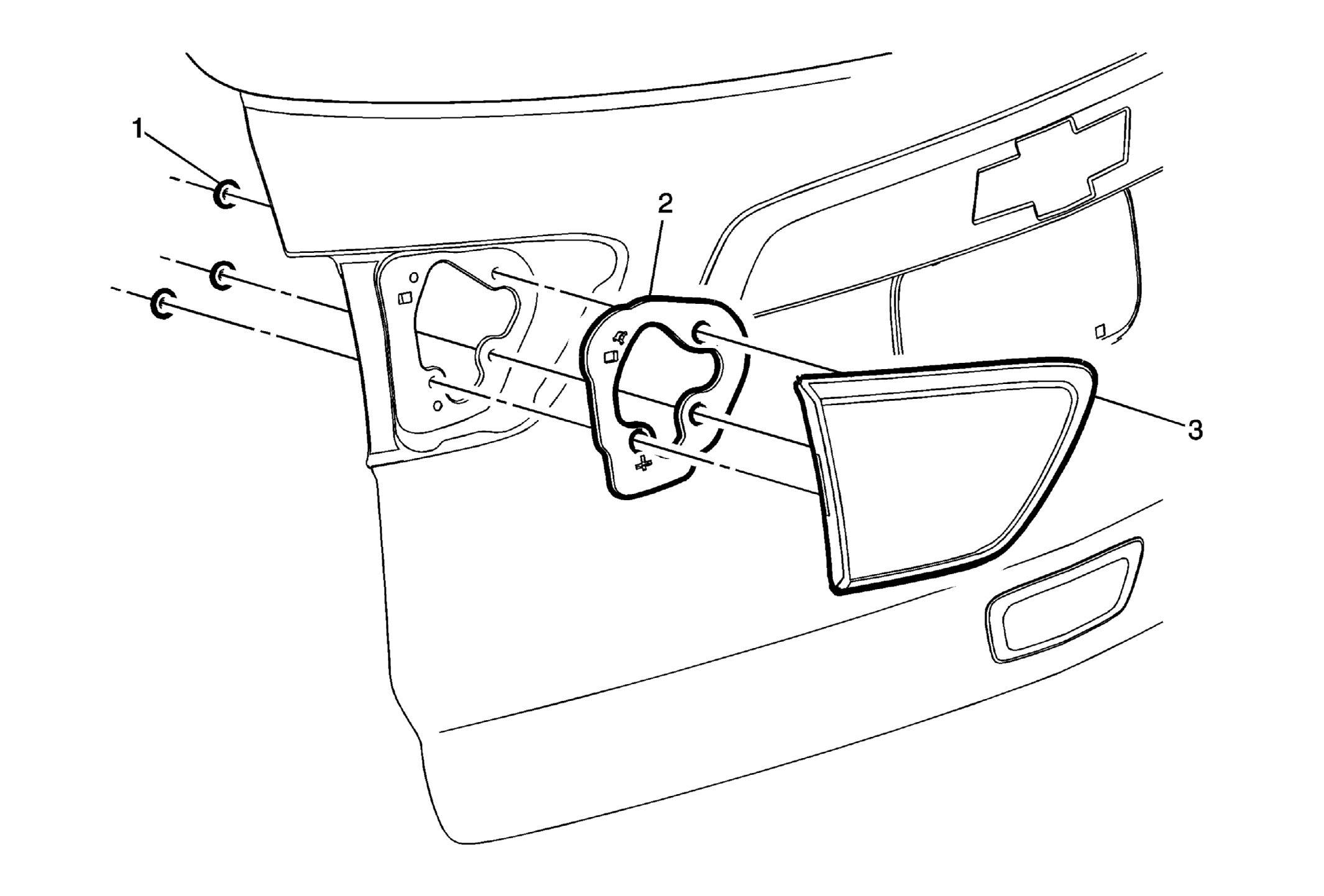

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the liftgate interior trim panel. Refer to Liftgate Trim Panel Replacement (Traverse) . |
|
| 1 | Backup Lamp Applique Nuts (Qty: 3)
CAUTION:
Refer to Fastener Caution . |
| 2 | Backup Lamp Applique Seal |
| 3 | Backup Lamp Applique Procedure Disconnect the liftgate wiring harness connector. |
