Three-Way Catalytic Converter Replacement (Service)

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

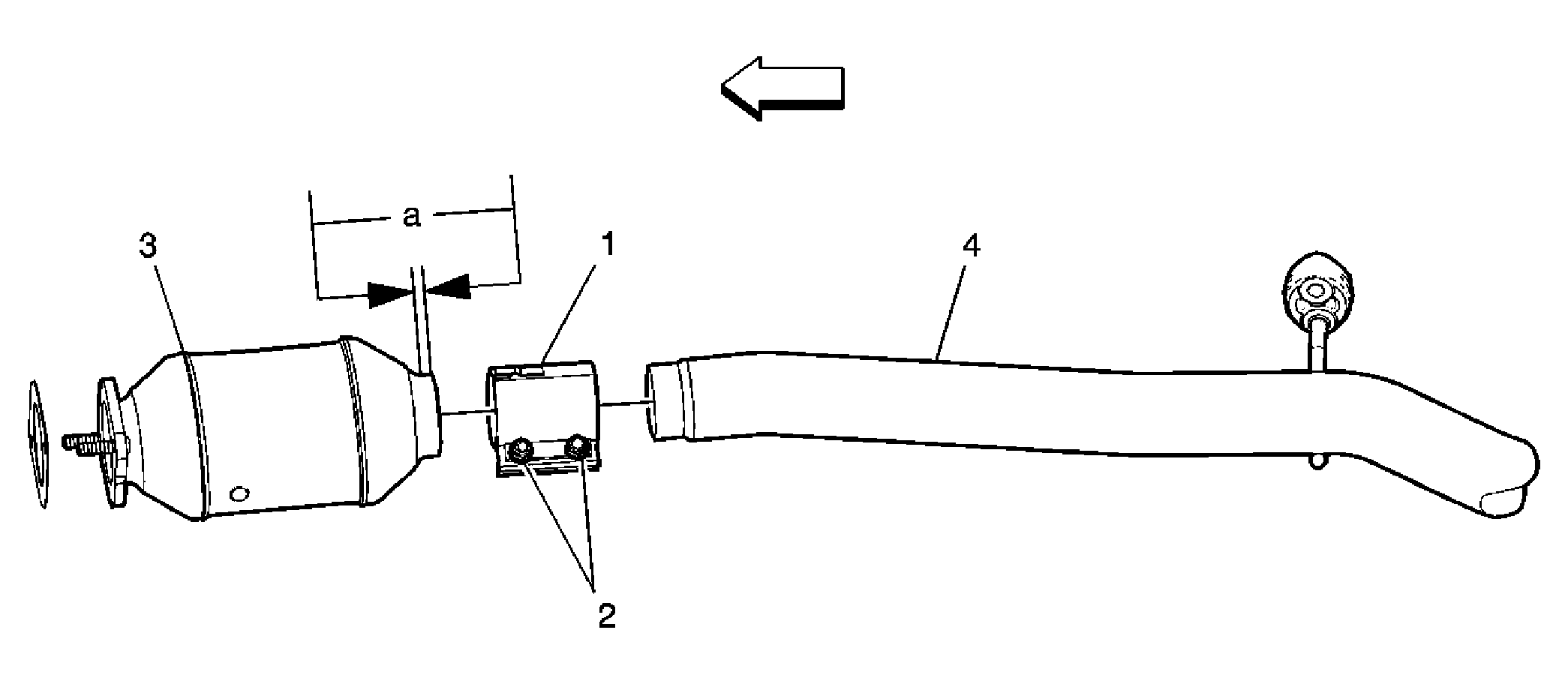

Fig 1: View Of Three-Way Catalytic Converter

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . CAUTION: Refer to Three-Way Catalytic Converter Damage Caution . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Cut the three-way catalytic converter 13.55 mm (0.5 inch) from the weld spot (a).
1	Service Clamp
2	Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 48 N.m (35 lb ft)
3	Three-Way Catalytic Converter
4	Exhaust Muffler
