Front Seat Lane Departure Warning Actuator Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

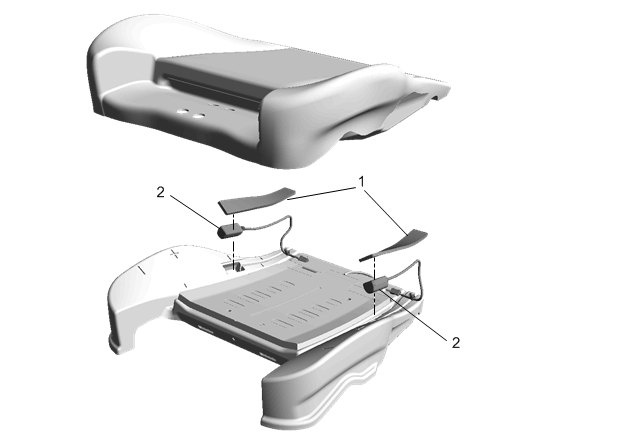

Fig 1: Front Seat Lane Departure Warning Actuator
GM4016281Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

Preliminary Procedure

  1. Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation .
  2. Remove the driver or passenger seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .
1 Front Seat Lane Departure Warning Actuator Topper Pad (Qty: 2)

Procedure

  1. Gently peel away the topper pad from the seat cushion pad.
  2. When removing the topper pad be careful not to damage the motor.
NOTE:

The topper pad must be replaced every time the motor is replaced.
2 Front Seat Lane Departure Warning Actuator Motor (Qty: 2)

Procedure

  1. Remove the actuator.
  2. Note the routing of the original wire and harness location for installation.
  3. Remove tape from new topper pad and place over motor and harness..
