Defogger Schematics

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

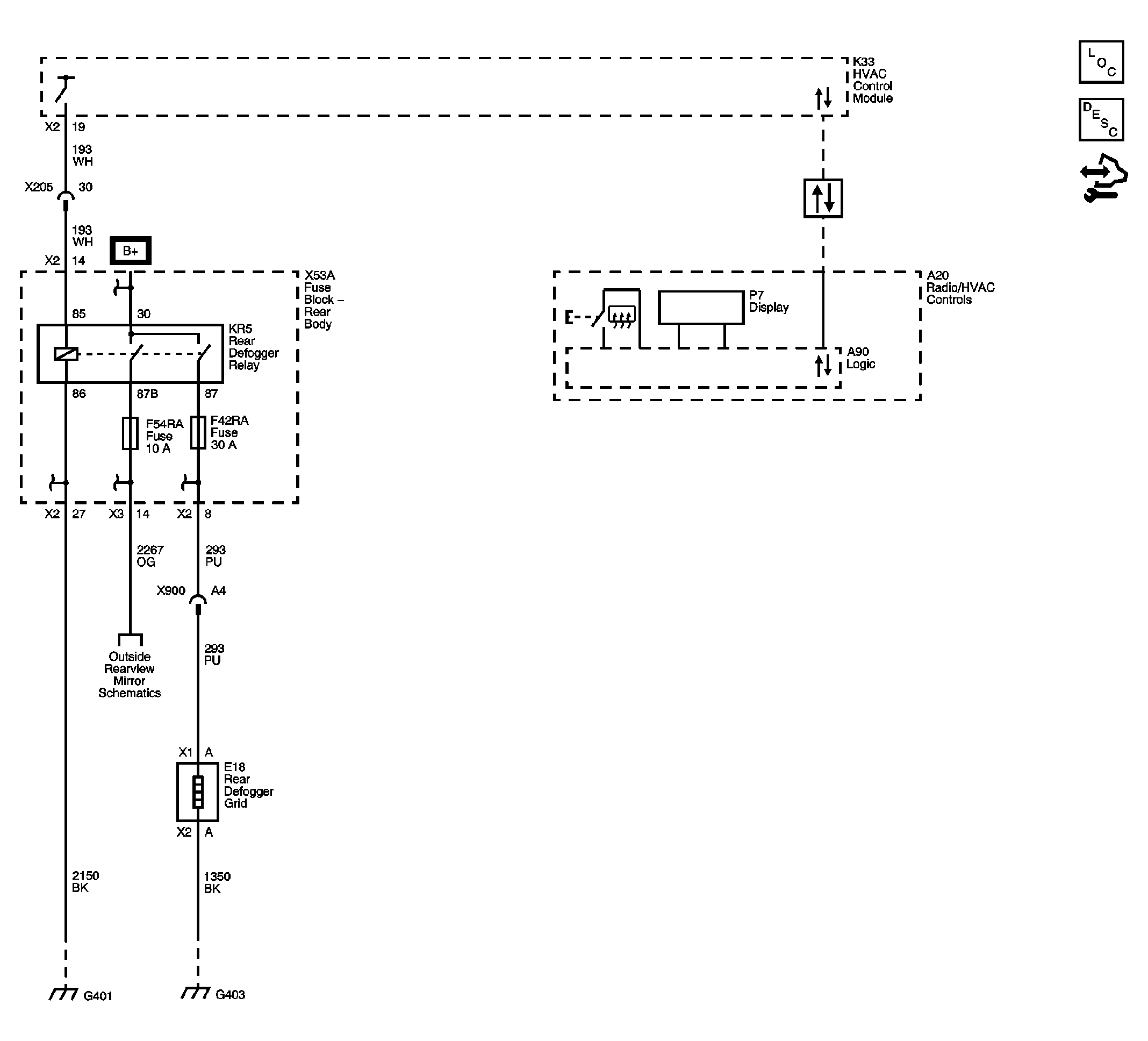

Fig 1: Rear Window Defogger Circuit Schematic
GM2249556Courtesy of GENERAL MOTORS CORP.
