Load Floor Panel Rear Extension Panel Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

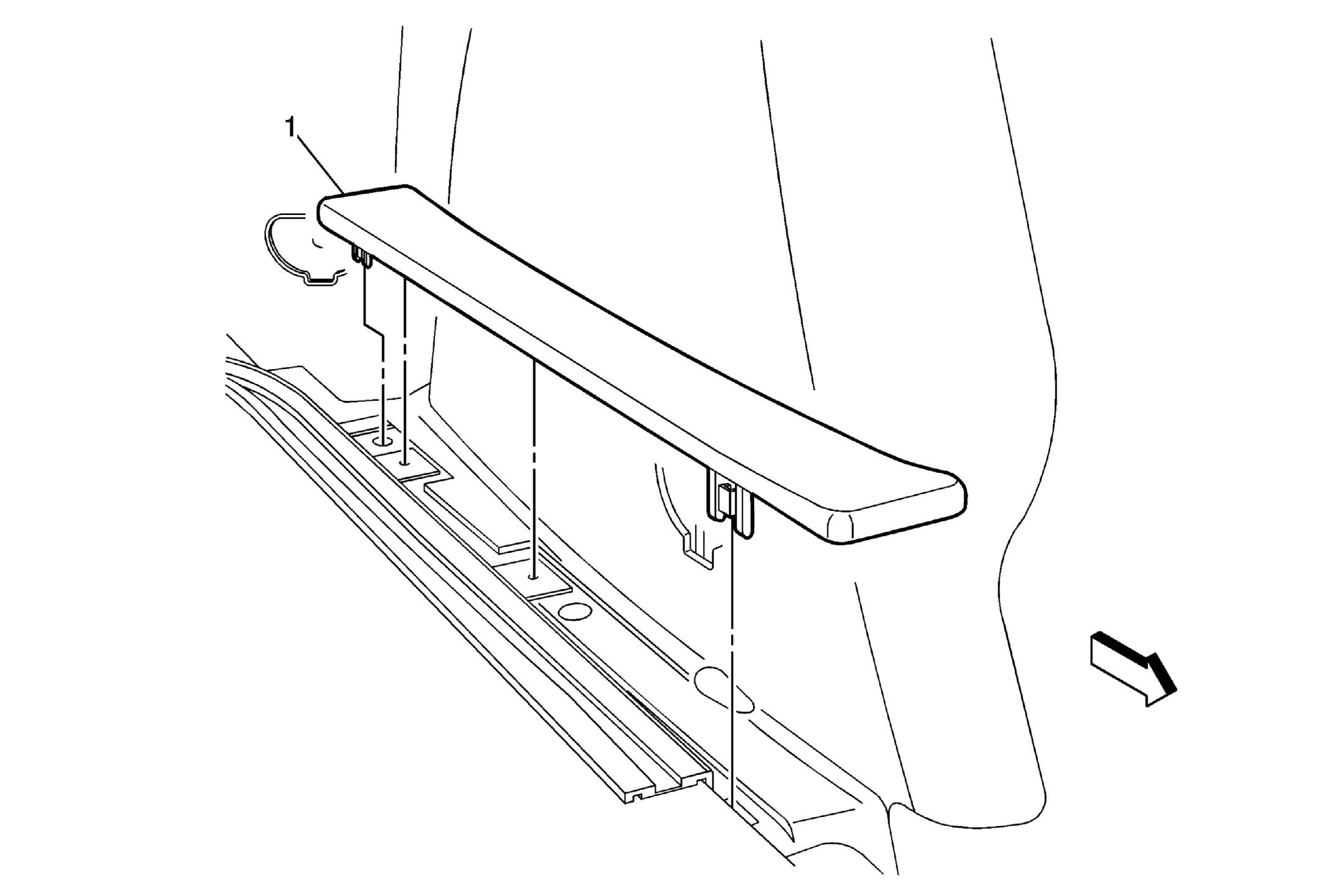

Fig 1: View Of Load Floor Panel Rear Extension Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Load Floor Panel Rear Extension Panel Assembly Procedure: Pull upward to disengage the integral clips and integral hook and loop fasteners from the rear compartment floor stowage compartment assembly.
