Radio Windshield Side Garnish Molding Speaker Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

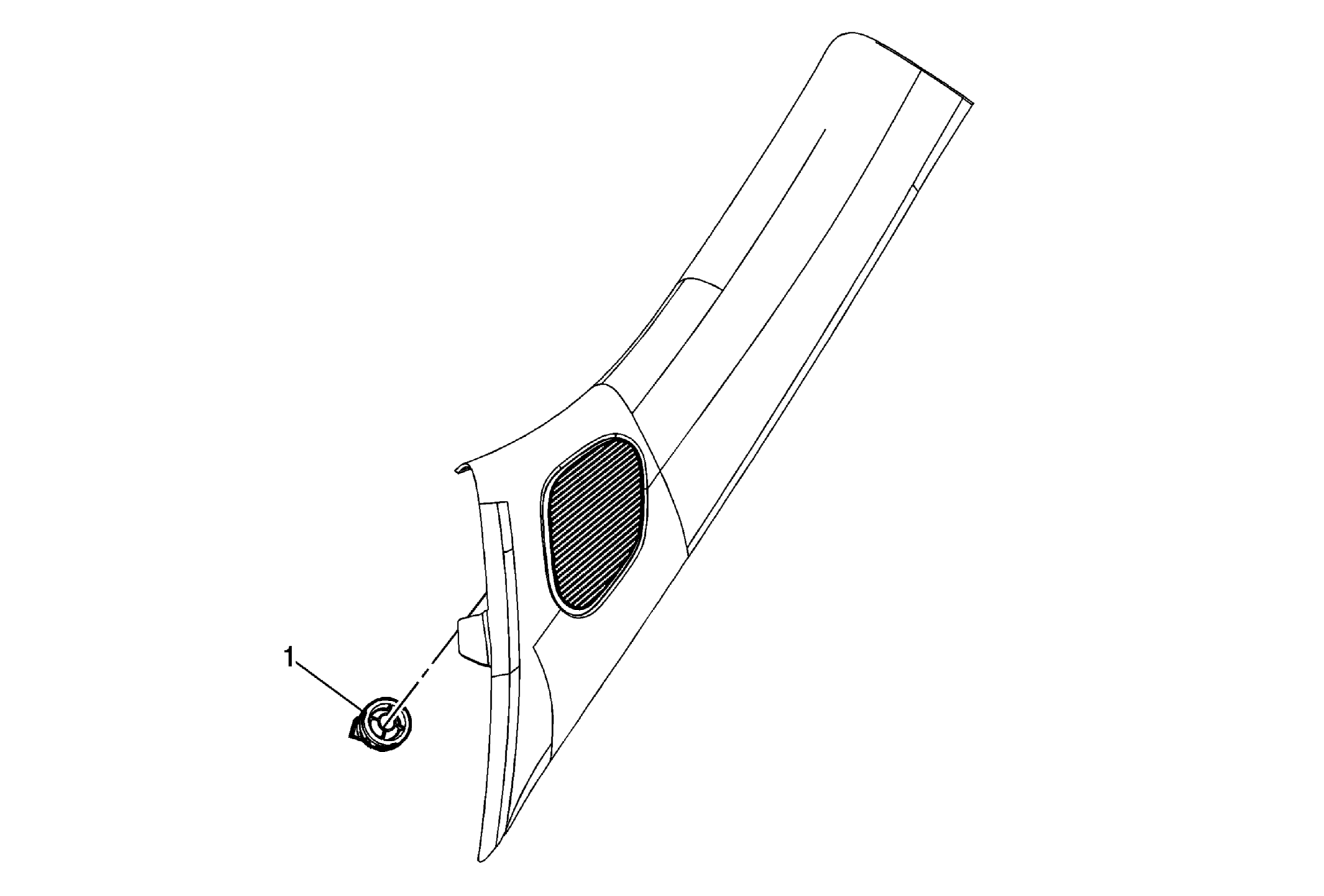

Fig 1: Identifying Radio Windshield Side Garnish Molding Speaker
GM2232493Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the windshield garnish molding. Refer to Windshield Garnish Molding Replacement .
1 Radio Windshield Side Garnish Molding Speaker

Procedure

  1. Disconnect the electrical connector.
  2. Unsnap speaker from grille.
