Radio Rear Speaker Grille Replacement
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

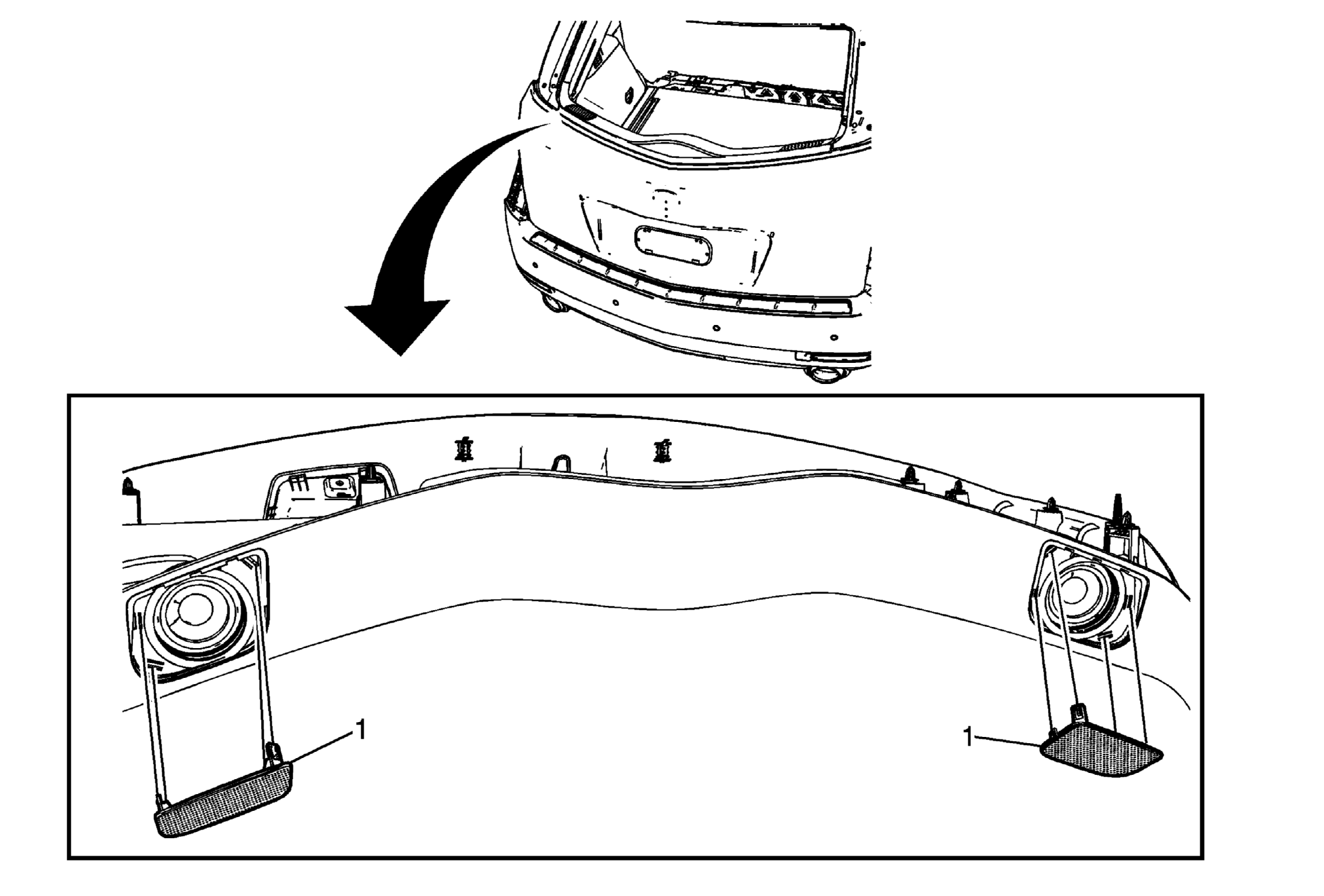

| Callout |
Component Name |
| 1 |
Radio Rear Speaker Grille
Procedure:
Using a flat bladed tool, release the speaker grille from the liftgate trim panel. The grille is attached with four integral clips. |
