Installation Procedure

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Outside Door Handle
    GM2476206Courtesy of GENERAL MOTORS COMPANY
  1. Insert the outside door handle (1) to the handle housing.
  2. Slide the outside door handle back and forth to ensure fit.
  3. Install the lock cylinder cap to the door.

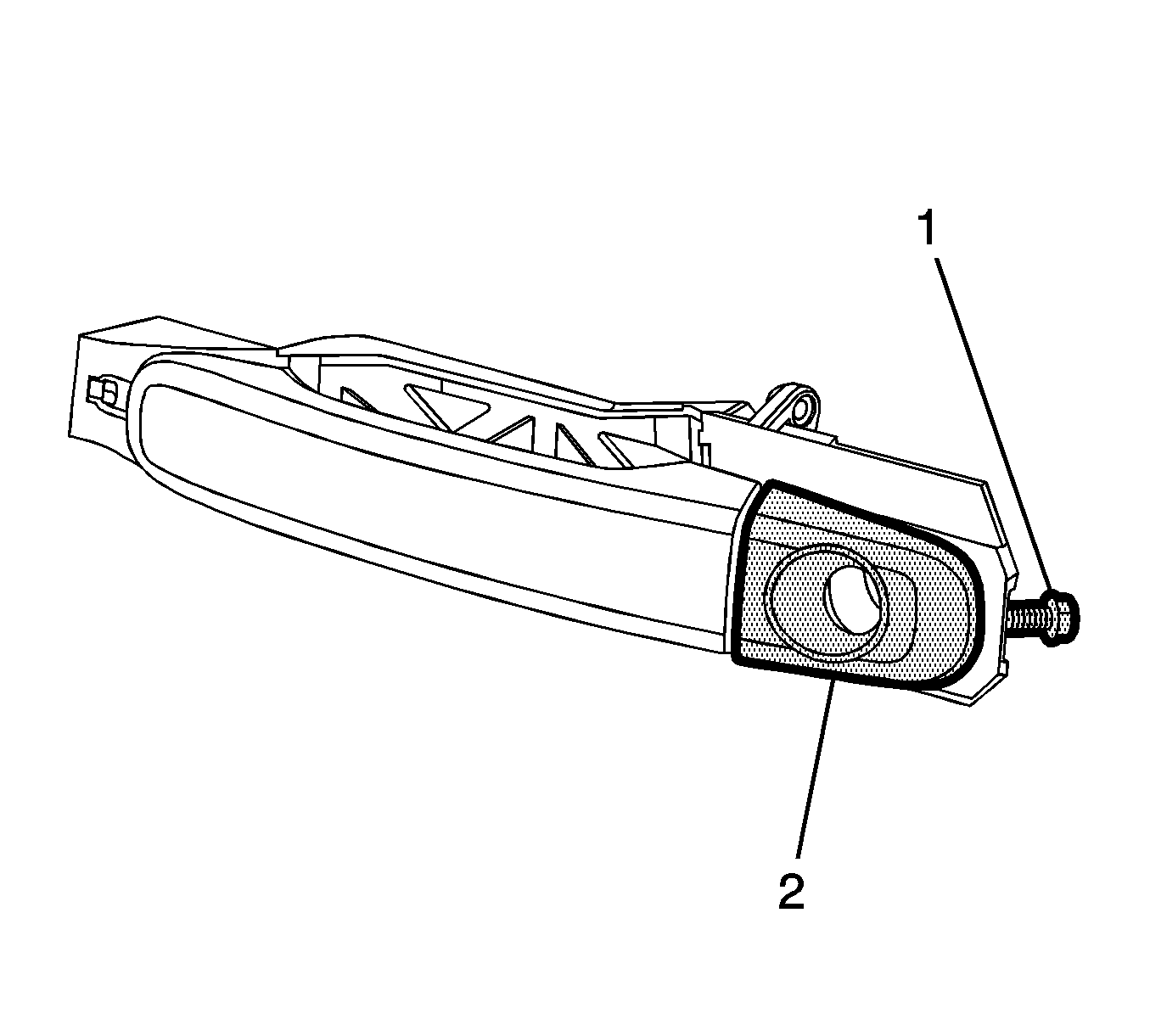

    4. Fig 2: Lock Cylinder Cap
    GM2528560Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

  4. Insert a TORX #25 driver through the access hole to tighten the screw (1) retaining the lock cylinder cap (2), tighten the screw to 5 N.m (44 lb in)
  5. Install the access plug located in the upper inner door.
  6. Inspect the door for proper operation.
