Radio Rear Side Door Speaker Replacement

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

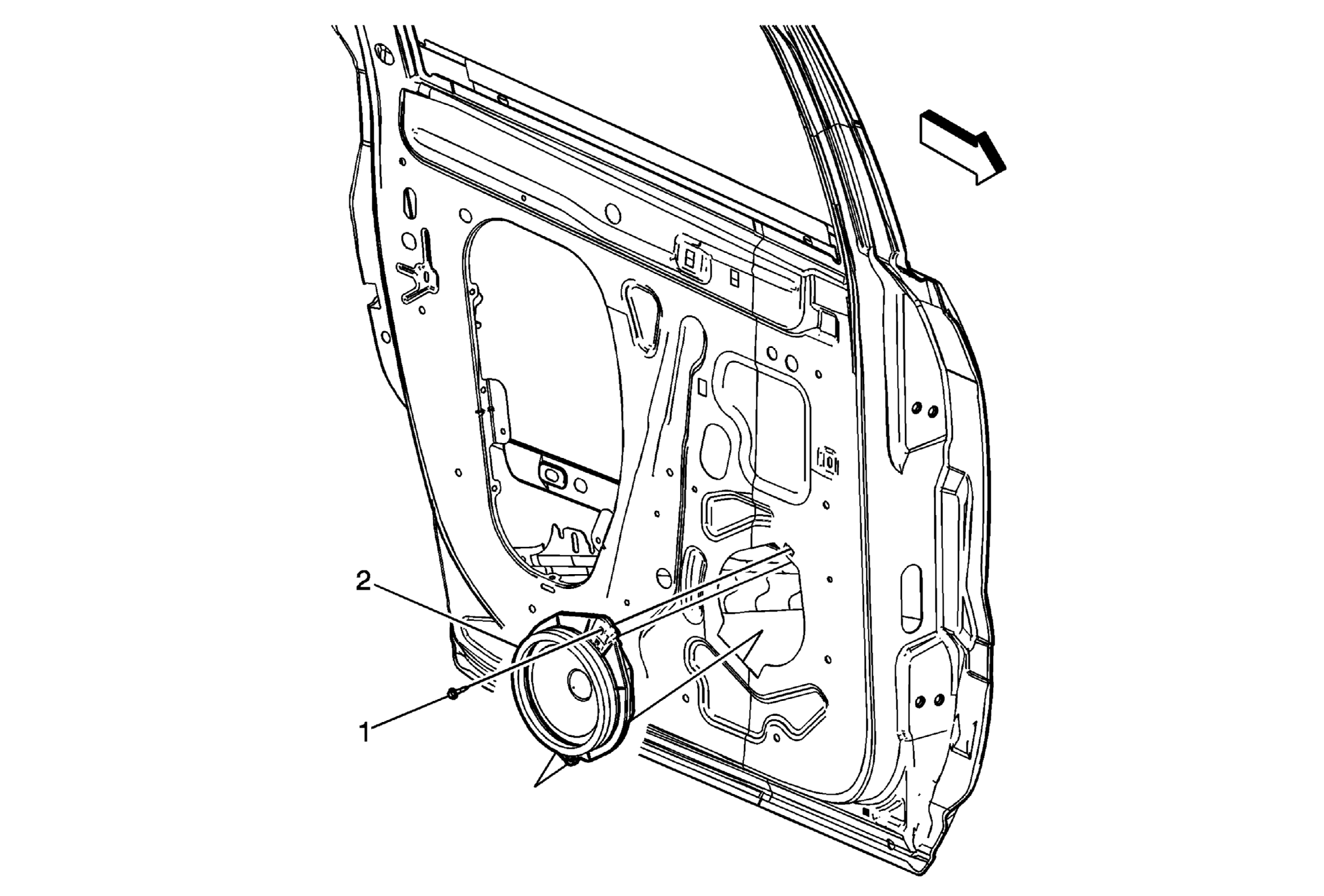

Fig 1: Radio Rear Side Door Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear door inner trim panel. Refer to Rear Side Door Trim Panel Replacement (Enclave) or Rear Side Door Trim Panel Replacement (Acadia or Traverse) .
1	Rear Side Door Speaker Screw CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Side Door Speaker Procedure Disconnect the electrical connectors.
