Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

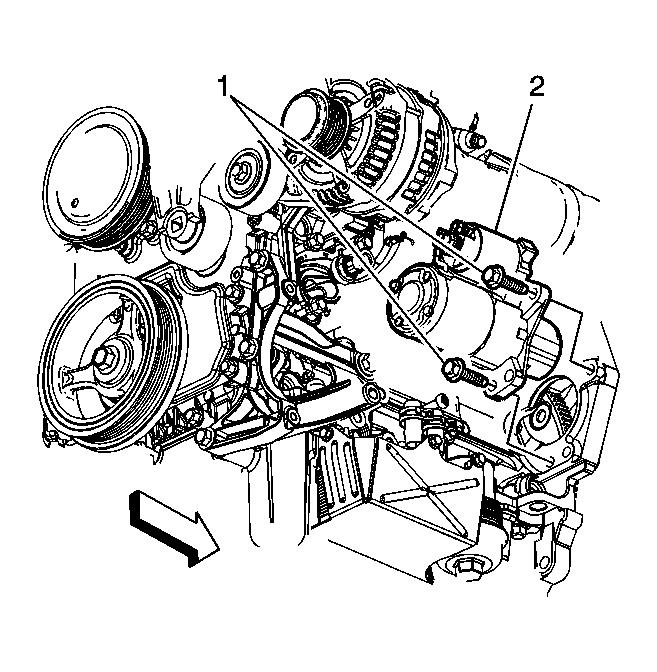

    Fig 1: Identifying Starter Mounting Bolts
    GM2268935Courtesy of GENERAL MOTORS CORP.
  1. Install the starter motor (2).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the starter motor mounting bolts (1) and tighten to 58 N.m (43 lb ft).

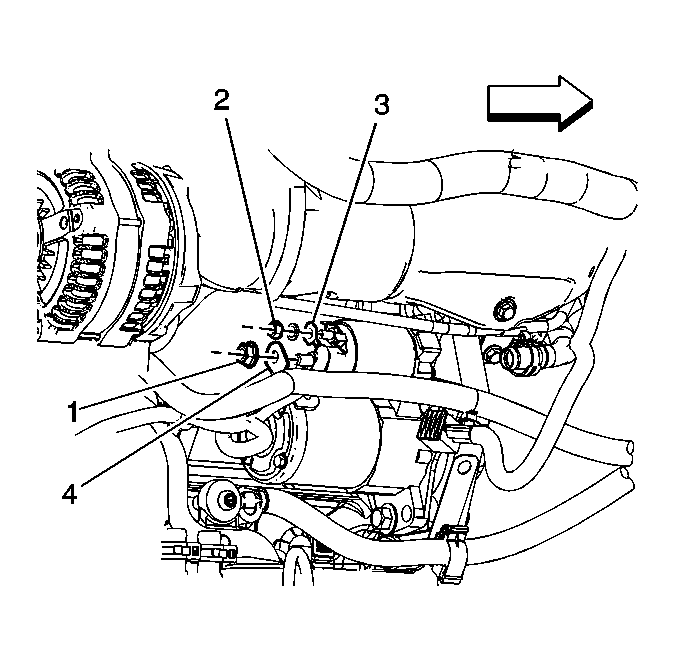

    3. Fig 2: Identifying Starter, Solenoid & Positive Battery Cable
    GM2268934Courtesy of GENERAL MOTORS CORP.
  3. Install the battery positive cable terminal (4) and nut (1) to the starter solenoid and tighten to 15 N.m (9 lb ft).
  4. Install the engine harness terminal (3) and nut (2) to the starter solenoid and tighten to 6 N.m (53 lb in).
  5. Reposition and install the secondary air injection pump and bracket. Refer to Secondary Air Injection Pump Replacement .
  6. Connect the battery negative cable.
