K22 Cooling Fan Control Module (LAU)

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

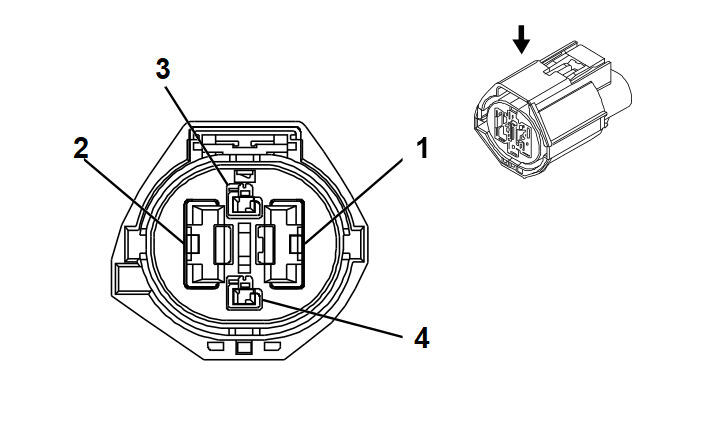

Fig 1: K22 Cooling Fan Control Module (LAU) Connector End View
GM2394097Courtesy of GENERAL MOTORS CORP.
K22 Cooling Fan Control Module (LAU)

Pin Wire Circuit Function
1 10 RD 242 Battery Positive Voltage
2 10 BK 450 Ground
3 - - Not Used
4 0.5 D-GN 335 Low Speed Cooling Fan Relay Control
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 13639758
  • Service Connector: 19181808
  • Description: 4-Way F 1.5 9.5 Series, Sealed (D-GY)
Terminal Part Information
  • Pins: 1, 2
  • Terminal/Tray: Pending
  • Core/Insulation Crimp: Pending
  • Release Tool/Test Probe: Pending
  • Pins: 4
  • Terminal/Tray: 7116-4102-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
