Front Floor Console Cover Replacement

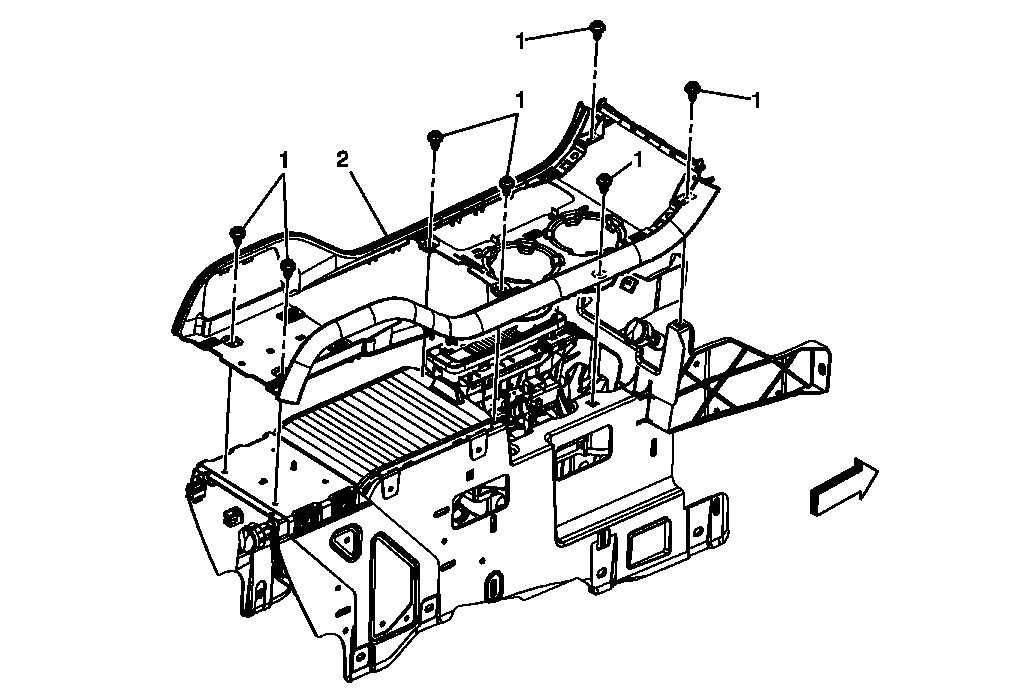

Fig 1: Locating Floor Console Cover
GM1844001Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Cover Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the front floor console. Refer to Front Floor Console Replacement (Enclave) , Front Floor Console Replacement (Acadia) , Front Floor Console Replacement (Traverse) .
  2. Remove the front floor console accessory housing. Refer to Front Floor Console Accessory Housing Replacement (Acadia) , Front Floor Console Accessory Housing Replacement (Enclave) , Front Floor Console Accessory Housing Replacement (Traverse) .
  3. Remove the front floor console cover. Refer to Front Floor Rear Console Front Cover Replacement .
1 Console Trim Plate Screws (Qty: 7)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Console Trim Plate
