Front Floor Console Compartment Replacement

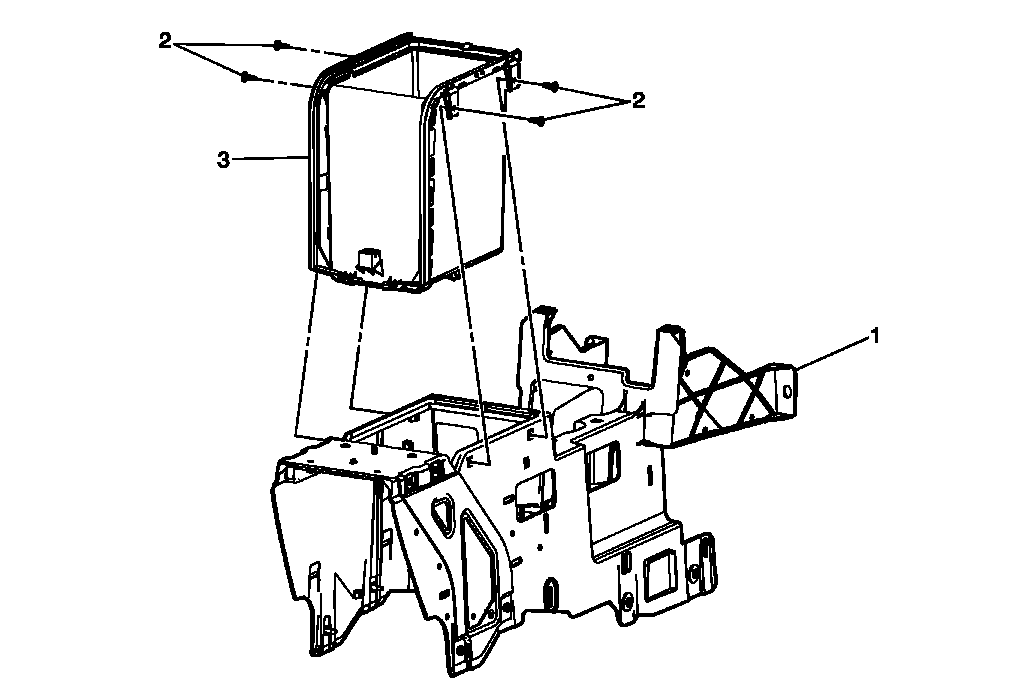

Fig 1: Front Floor Console Compartment
GM2367416Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Compartment Replacement

Callout Component Name
1 Front Floor Console Carrier
Refer to Front Floor Console Carrier Replacement .
2 Front Floor Console Compartment Fasteners (Qty: 4)
CAUTION:

Refer to Fastener Caution .
3 Front Floor Console Compartment Assembly
