Release Systems Wiring Schematics: Tb4

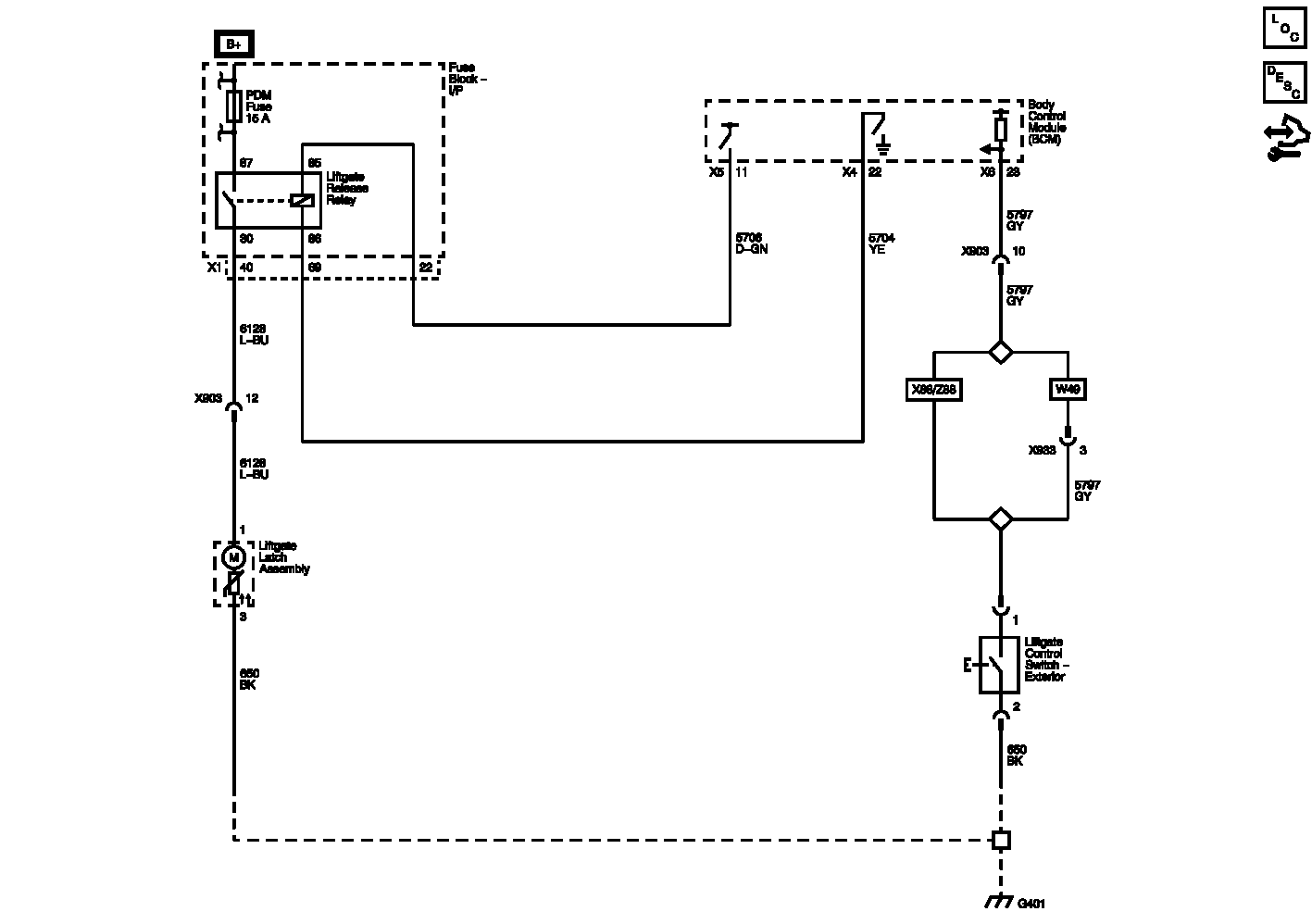

Fig 1: Release Systems TB4 Wiring Schematic

GM2566813

Courtesy of GENERAL MOTORS COMPANY
