Video System Wiring Schematics: U42

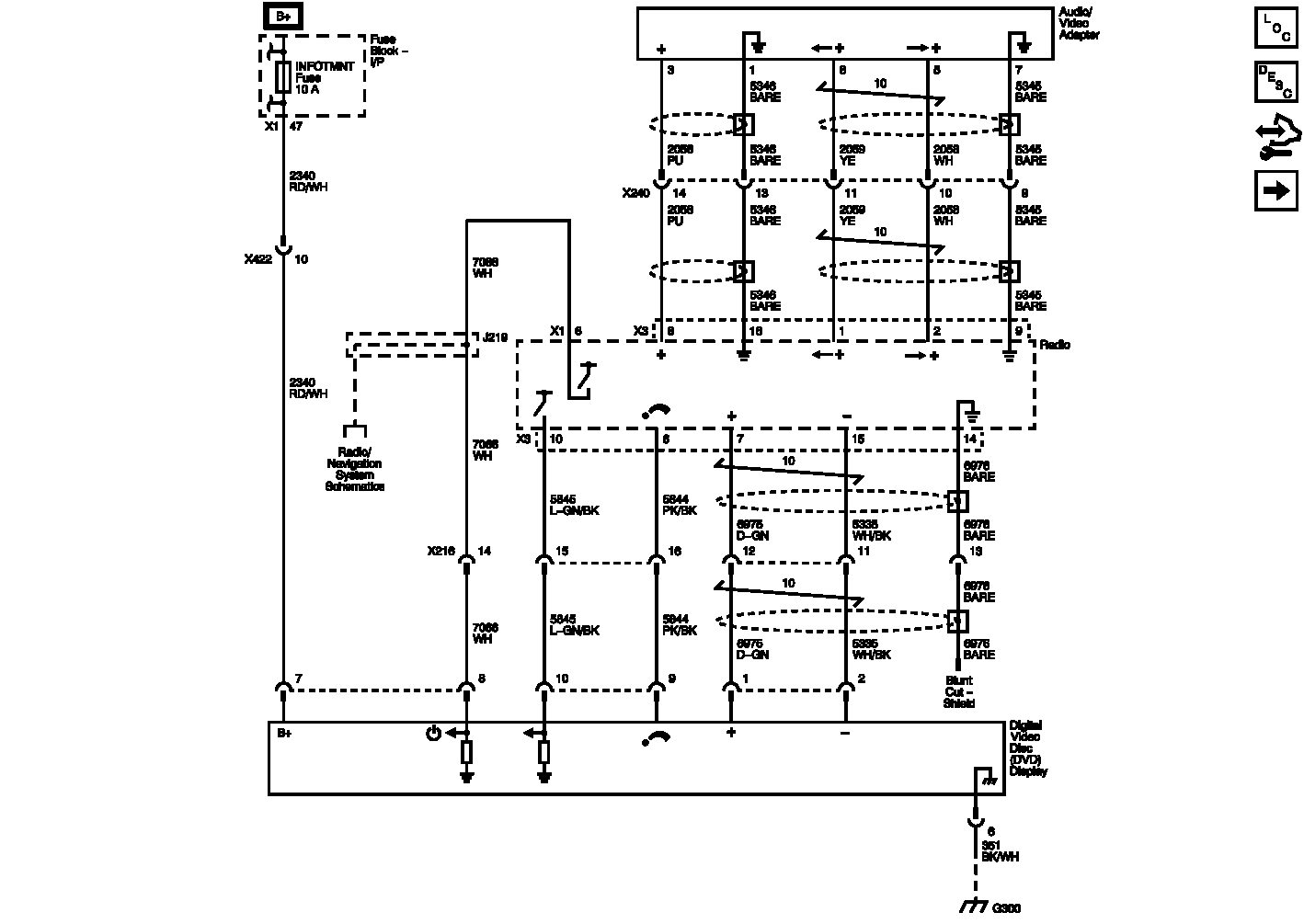

Fig 1: Video System U42 Wiring Diagram

GM2566971

Courtesy of GENERAL MOTORS COMPANY
