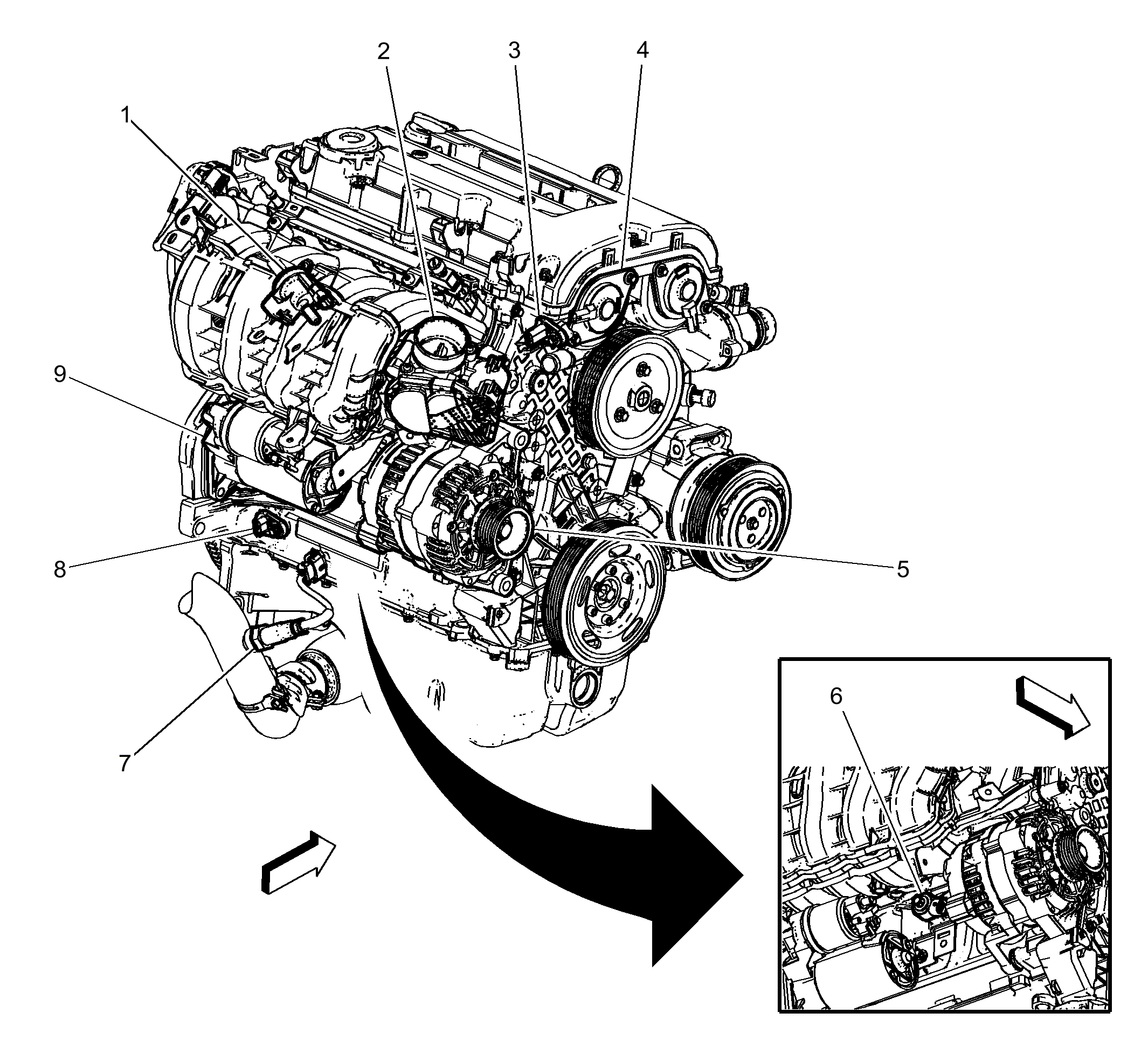

Right Rear of Engine Components - 1.4L (LUV)
Right Rear of Engine Components - 1.4L (LUV)
| Component Name | Callout |
|---|---|
| Q12 Evaporative Emission Purge Solenoid Valve | 1 |
| Q38 Throttle Body | 2 |
| B23F Camshaft Position Sensor - Intake | 3 |
| Q6F Camshaft Position Actuator Solenoid Valve - Intake | 4 |
| G13 Generator | 5 |
| B68 Knock Sensor | 6 |
| B52B Heated Oxygen Sensor 2 | 7 |
| B26 Crankshaft Position Sensor | 8 |
| M64 Starter Motor | 9 |
