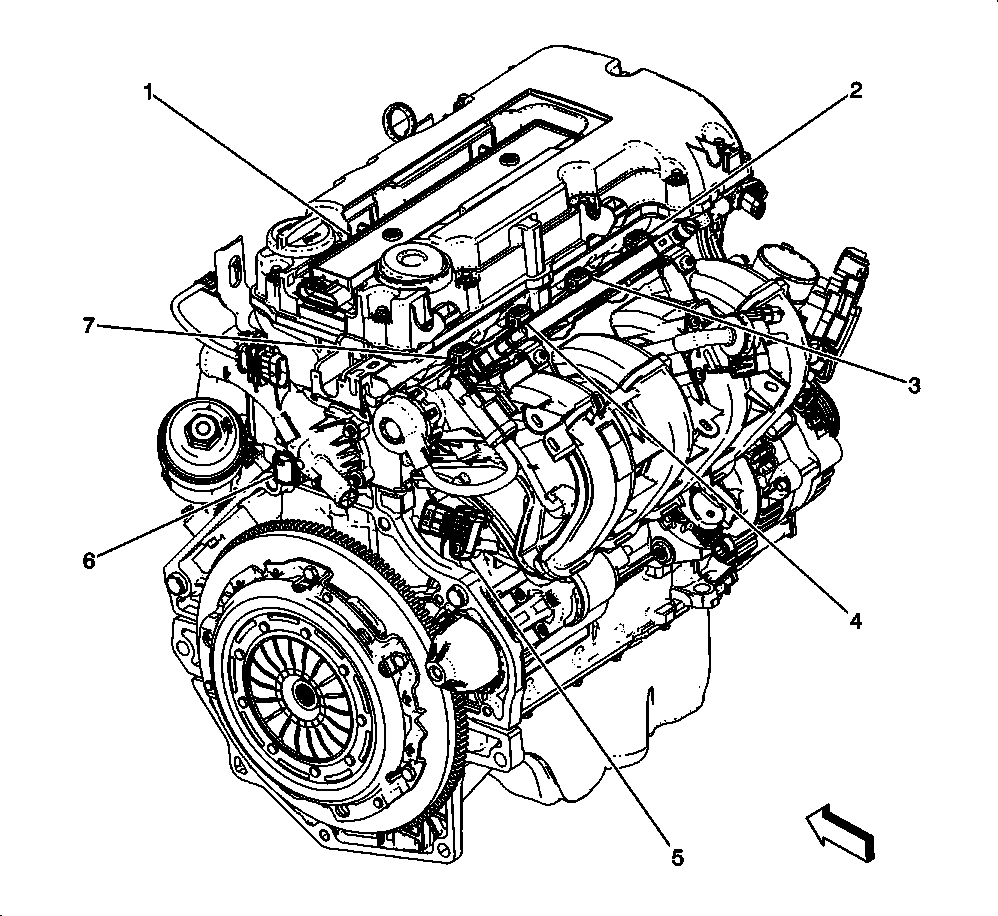

Left Rear of Engine Components - 1.4L (LUV)
Left Rear of Engine Components - 1.4L (LUV)
| Component Name |
Callout |
| K35 Ignition Coil Module |
1 |
| Q17A Fuel Injector 1 |
2 |
| Q17B Fuel Injector 2 |
3 |
| Q17C Fuel Injector 3 |
4 |
| B74 Manifold Absolute Pressure Sensor |
5 |
| B34A Engine Coolant Temperature Sensor 1 |
6 |
| Q17D Fuel Injector 4 |
7 |
Courtesy of GENERAL MOTORS COMPANY
