Windshield Wiper System Module Replacement

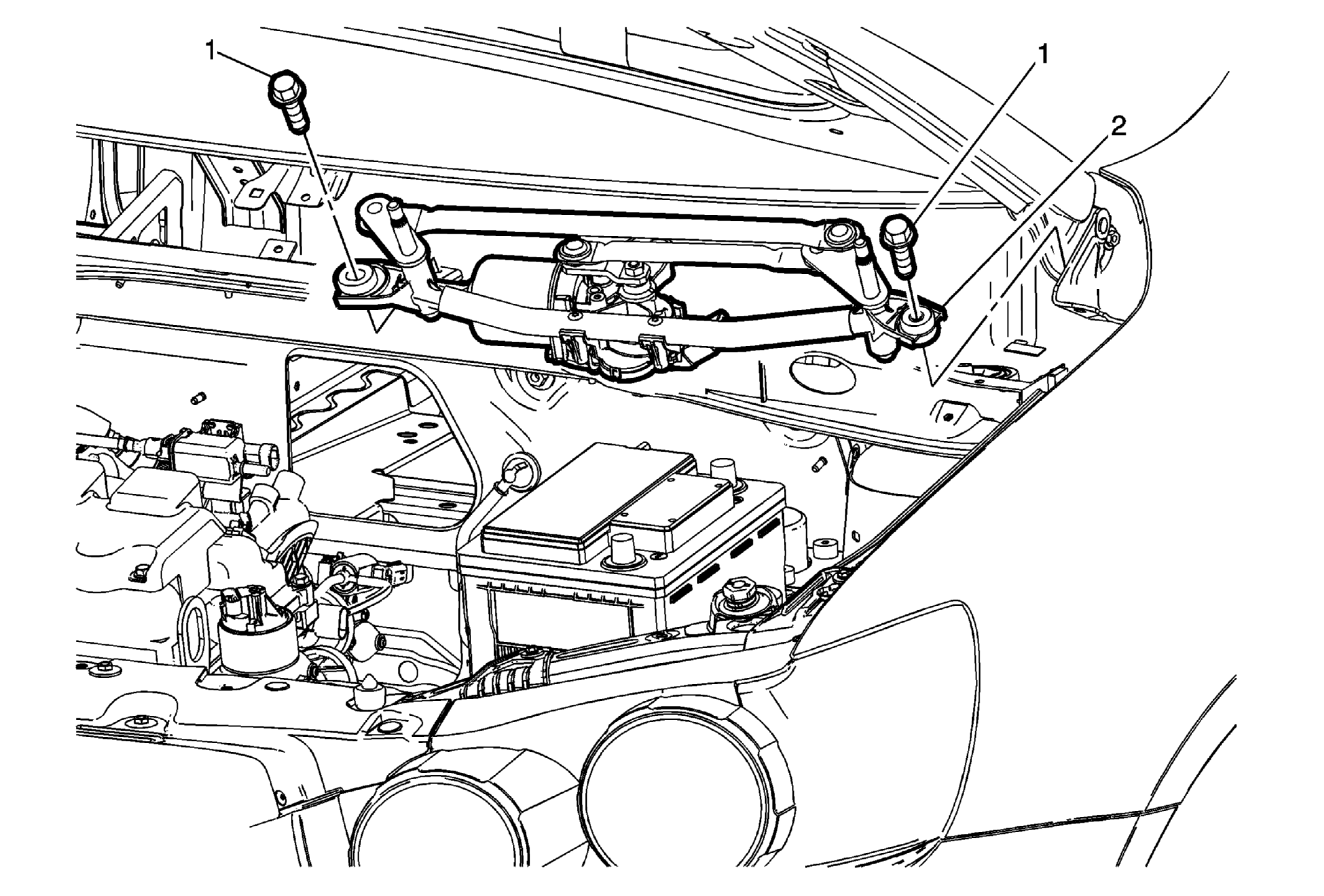

Fig 1: Windshield Wiper System Module
GM2497153Courtesy of GENERAL MOTORS COMPANY
Windshield Wiper System Module Replacement

Callout Component Name

Preliminary Procedures

  1. Open and support the hood assembly.
  2. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
1 Windshield Wiper System Module Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
18 N.m (13 lb ft)
2 Windshield Wiper System Module

Procedure

  1. Lift the wiper system module from the plenum brackets.
  2. Disconnect the electrical connector from the windshield wiper motor.
  3. Remove the windshield wiper system module from the plenum.
