Behind the Center of the Instrument Panel Components (RHD)

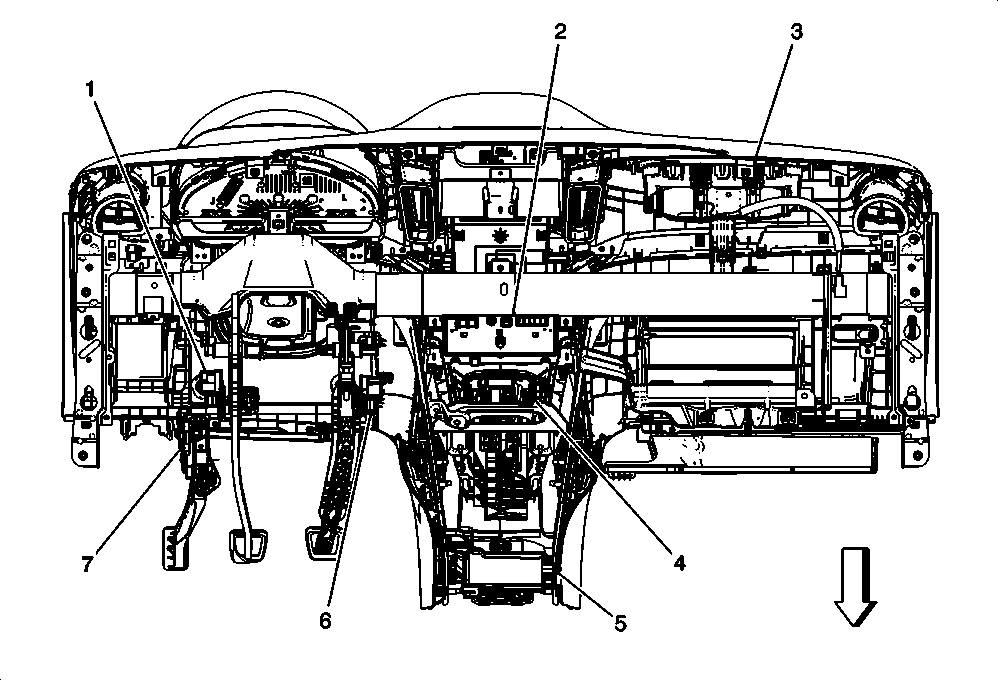

Fig 1: Behind the Center of the Instrument Panel Components (RHD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	B22 Brake Pedal Position Sensor
2	A11 Radio
3	F101 Passenger Instrument Panel Air Bag
4	T11 Multimedia Player Interface Module
5	K9 Body Control Module
6	B107 Accelerator Pedal Position Sensor
7	B6 Clutch Pedal Position Sensor
