Left Rear of the Engine Compartment Components (RHD)

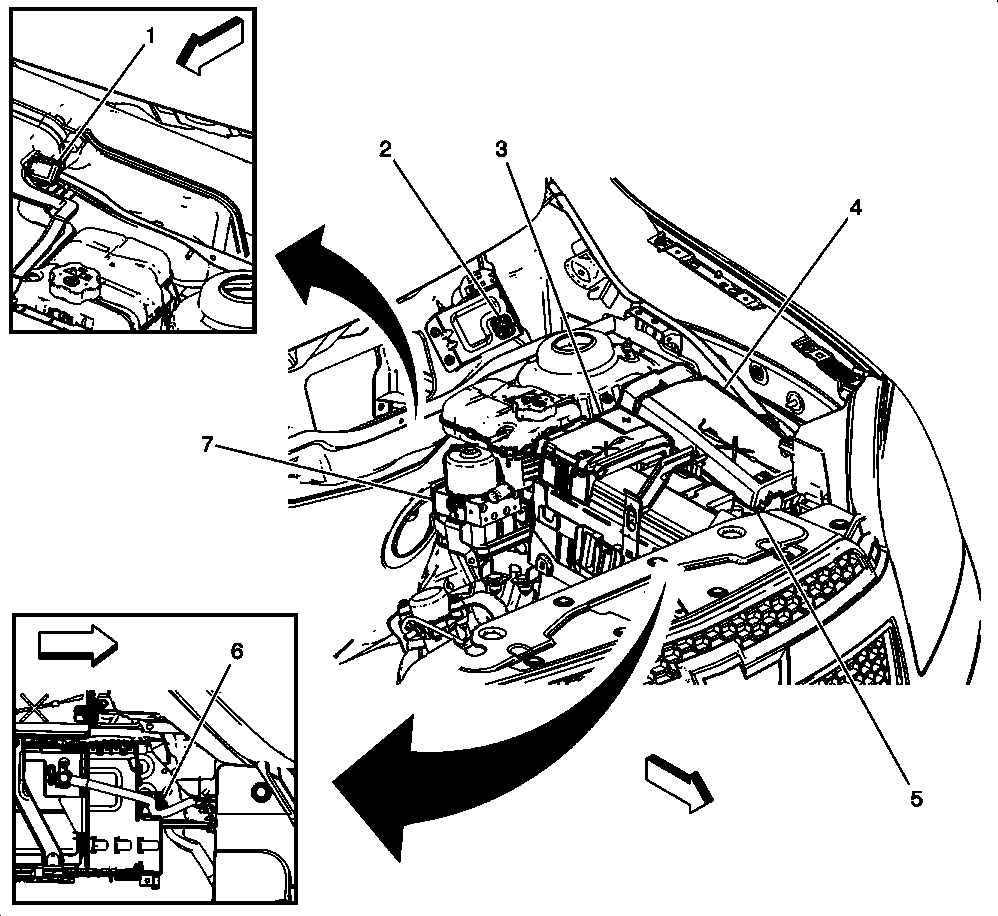

Fig 1: Left Rear of Engine Compartment Components (RHD)
GM2508622Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 B108 Air Quality Sensor
2 P25 Power Sounder Content Theft Deterrent Alarm Module
3 X50B Fuse Block - Underhood Auxiliary
4 X50A Fuse Block - Underhood
5 C1 Battery
6 B18 Battery Current Sensor
7 K17 Electronic Brake Control Module
