Moveable Windows

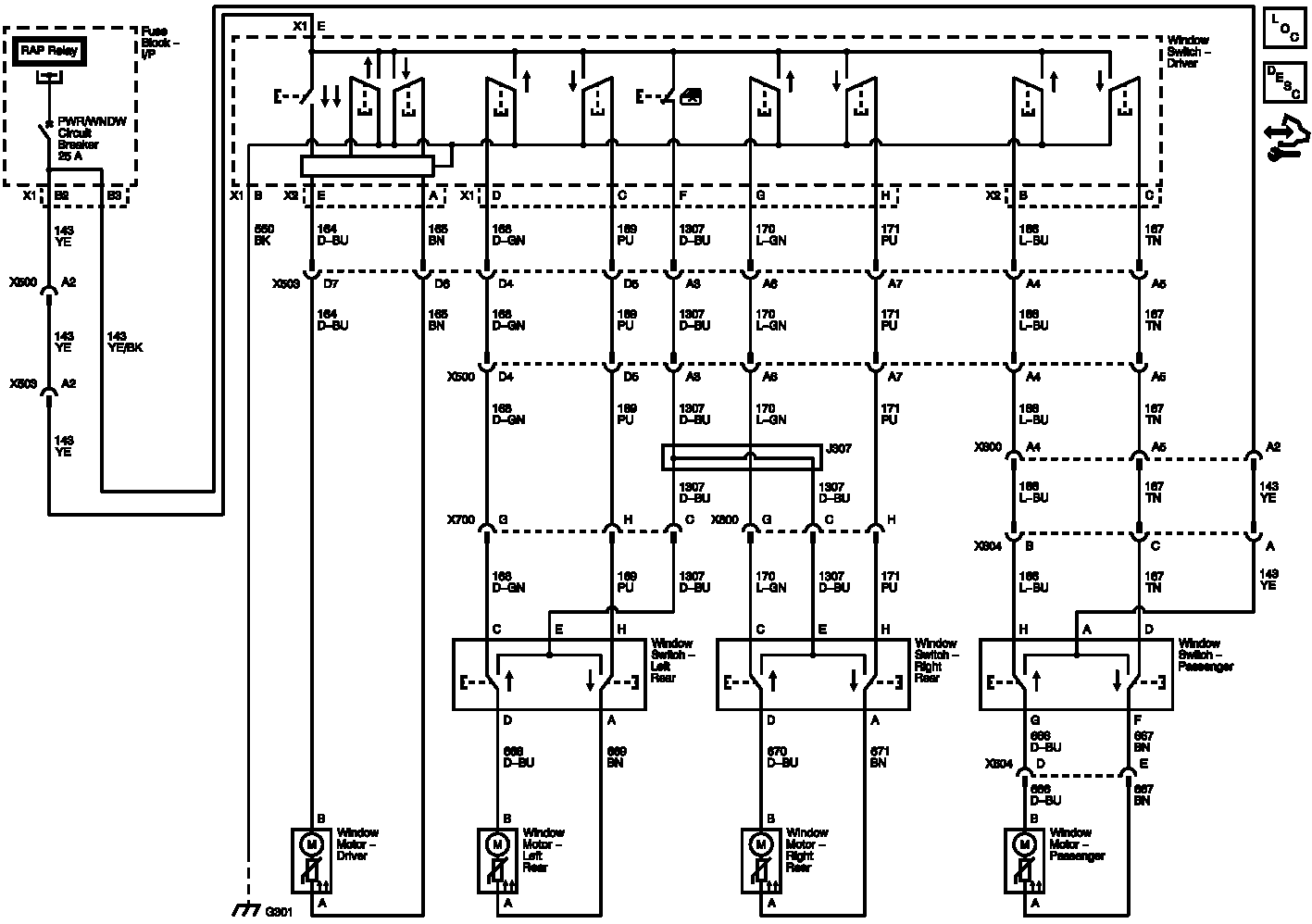

Fig 1: Moveable Windows Wiring Schematic

GM2583091

Courtesy of GENERAL MOTORS COMPANY
