Secondary Air Injection Pump Inlet Hose Replacement

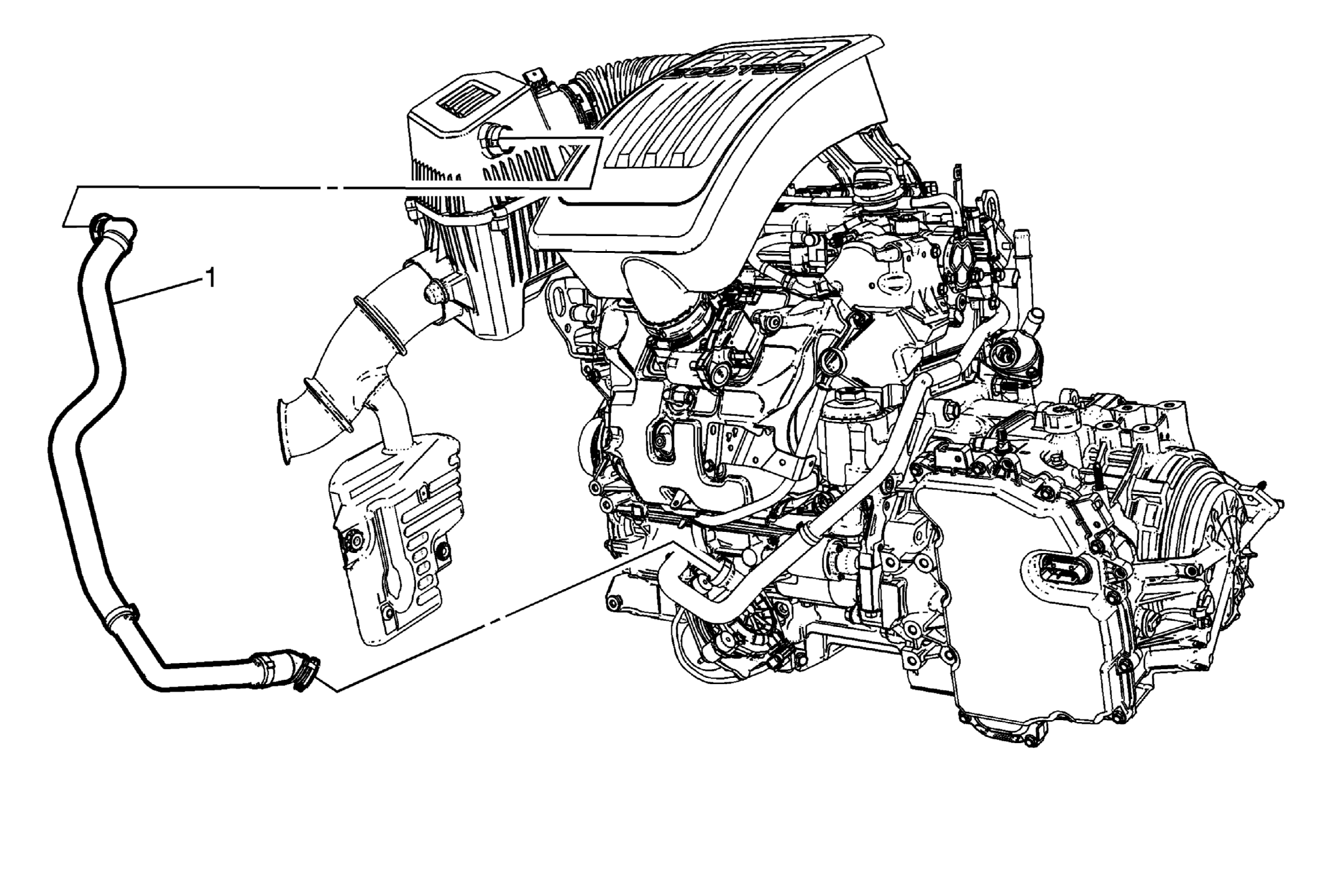

Fig 1: Secondary Air Injection Pump Inlet Hose
GM2670678Courtesy of GENERAL MOTORS COMPANY
Secondary Air Injection Pump Inlet Hose Replacement

Callout Component Name
1 Secondary Air Injection Inlet Pump Hose
Procedure
Disconnect the quick connect fittings by squeezing both sides.
