Installation Procedure

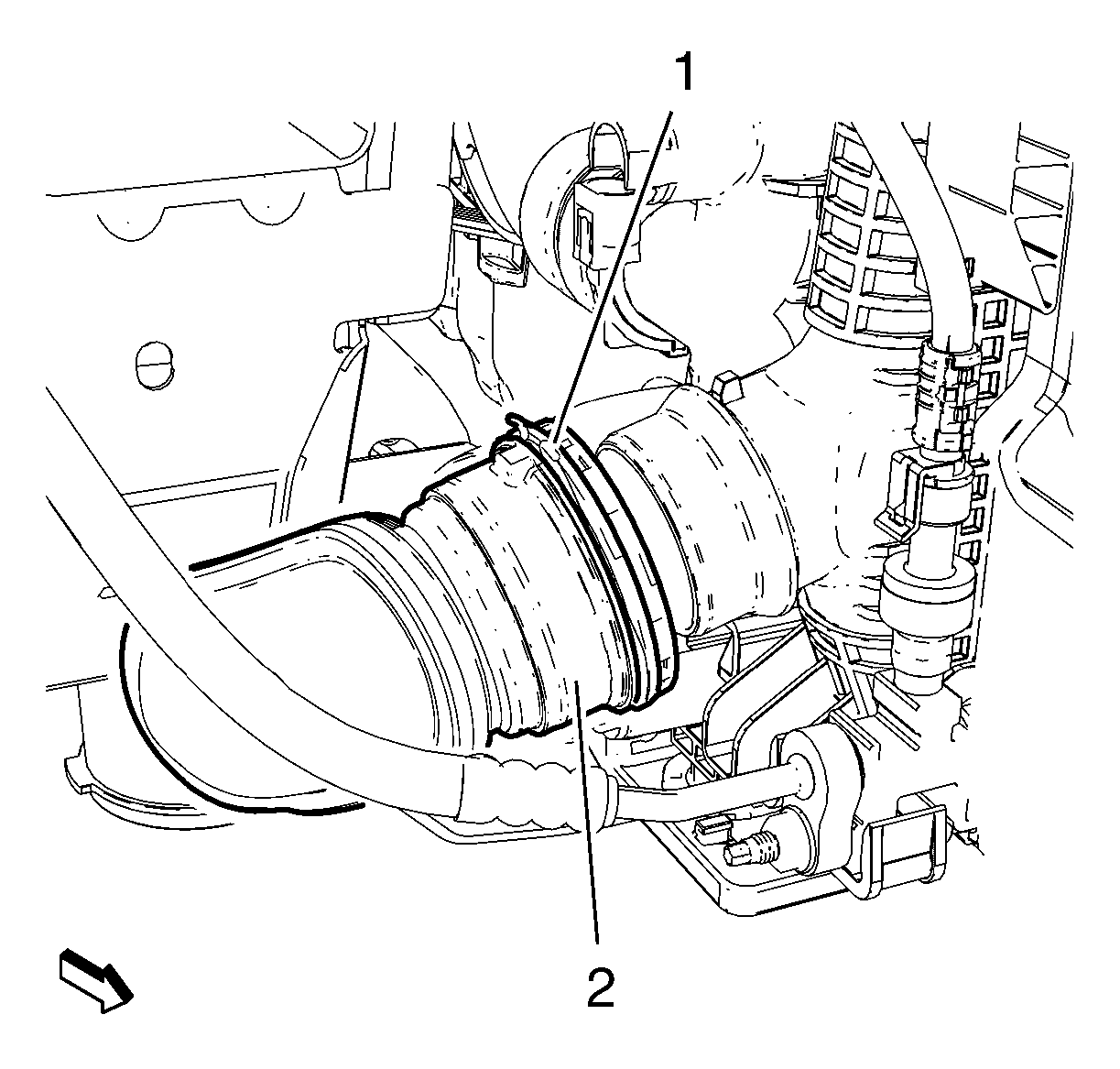

    Fig 1: Charge Air Cooler Inlet Air Hose Quick Connector
    GM2192316Courtesy of GENERAL MOTORS COMPANY
  1. Install the charger air cooler inlet air hose (2) to the charge air cooler until it engages audible.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .

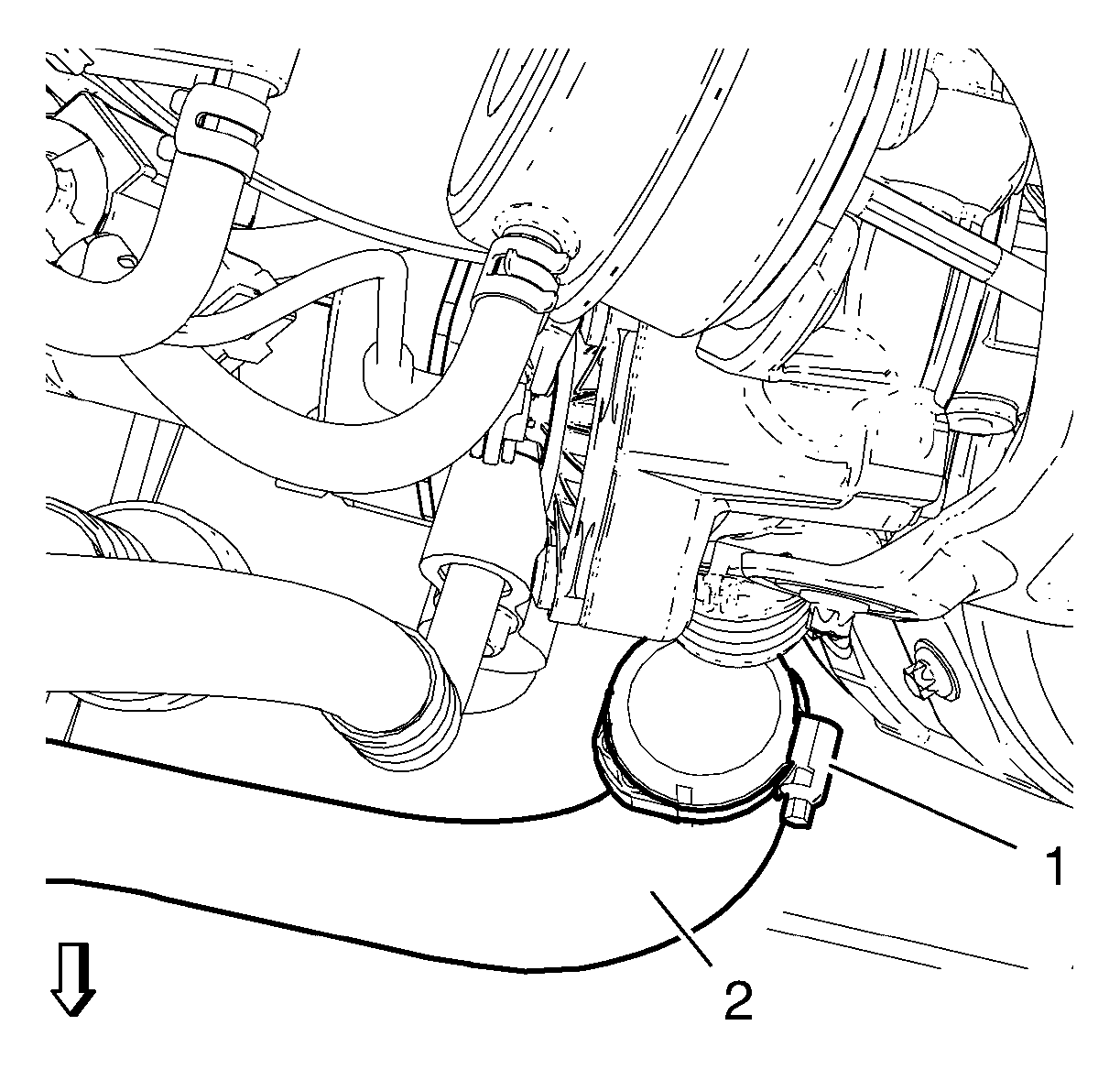

    3. Fig 2: Charge Air Cooler Inlet Air Hose
    GM2192317Courtesy of GENERAL MOTORS COMPANY
  3. Install the charger air cooler inlet air hose (2) to the turbocharger.
  4. Install and tighten the charger air cooler inlet air hose clamp (1).
  5. Connect the battery. Refer to Battery Negative Cable Disconnection and Connection .
  6. Close the hood.
