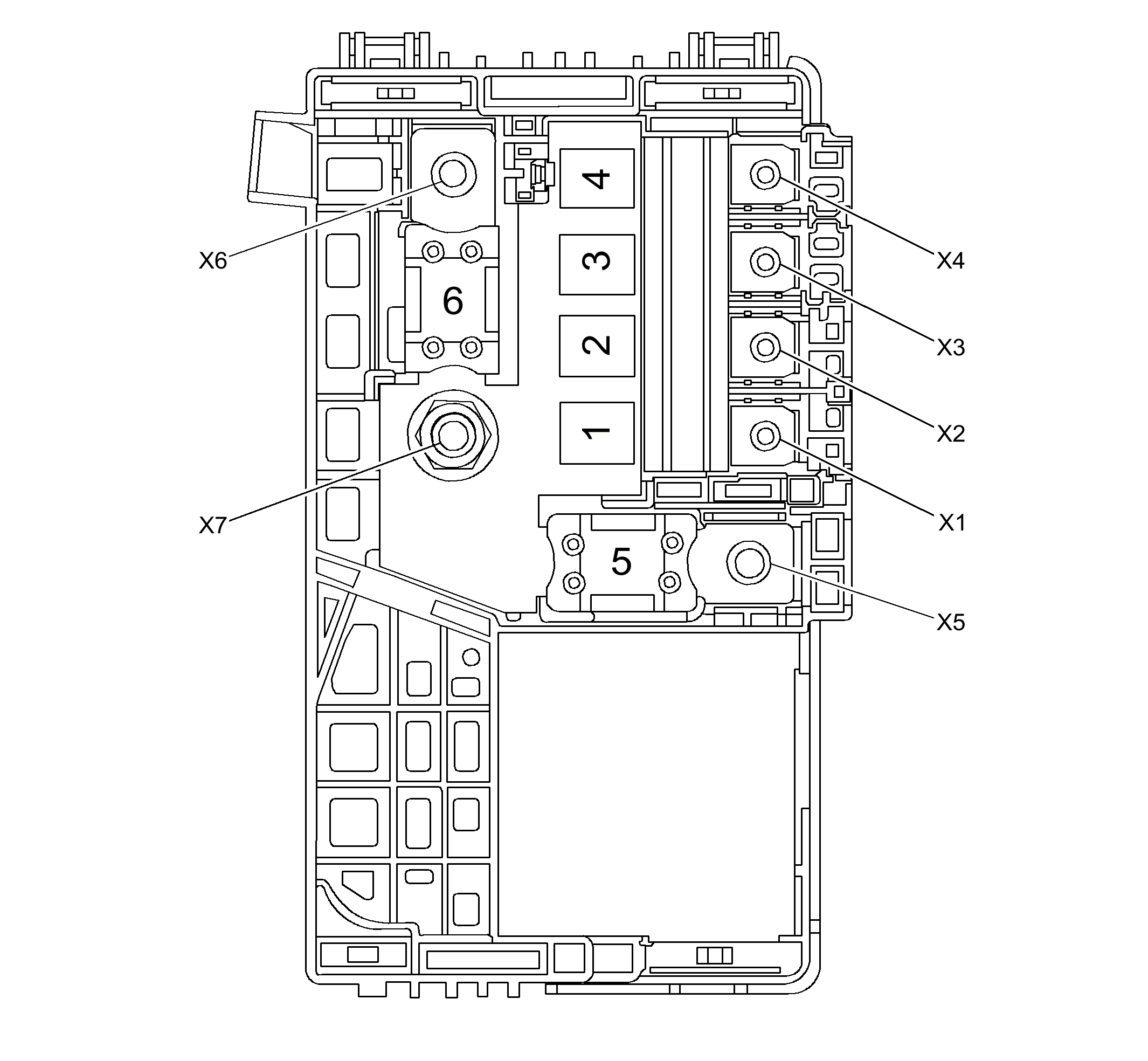

X50D Fuse Block - Battery Top View
X50D FUSE BLOCK - BATTERY FUSE IDENTIFICATION
| No. | Device Label Name | Device Assigned Name | Rating | Description |
|---|---|---|---|---|
| 1 | - | F1UD Fuse | 100A | X51 Fuse Block - Instrument Panel |
| 2 | - | F2UD Fuse | 100A | X51 Fuse Block - Instrument Panel |
| 3 | - | F3UD Fuse | 80A | K43 Power Steering Control Module |
| 4 | - | - | - | Not Used |
| 5 | - | F5UD Fuse | 250A | Fuse Block - Underhood |
| 6 | - | F6UD Fuse | 250A | M64 Starter Motor, G13 Generator |
