Installation Procedure

WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

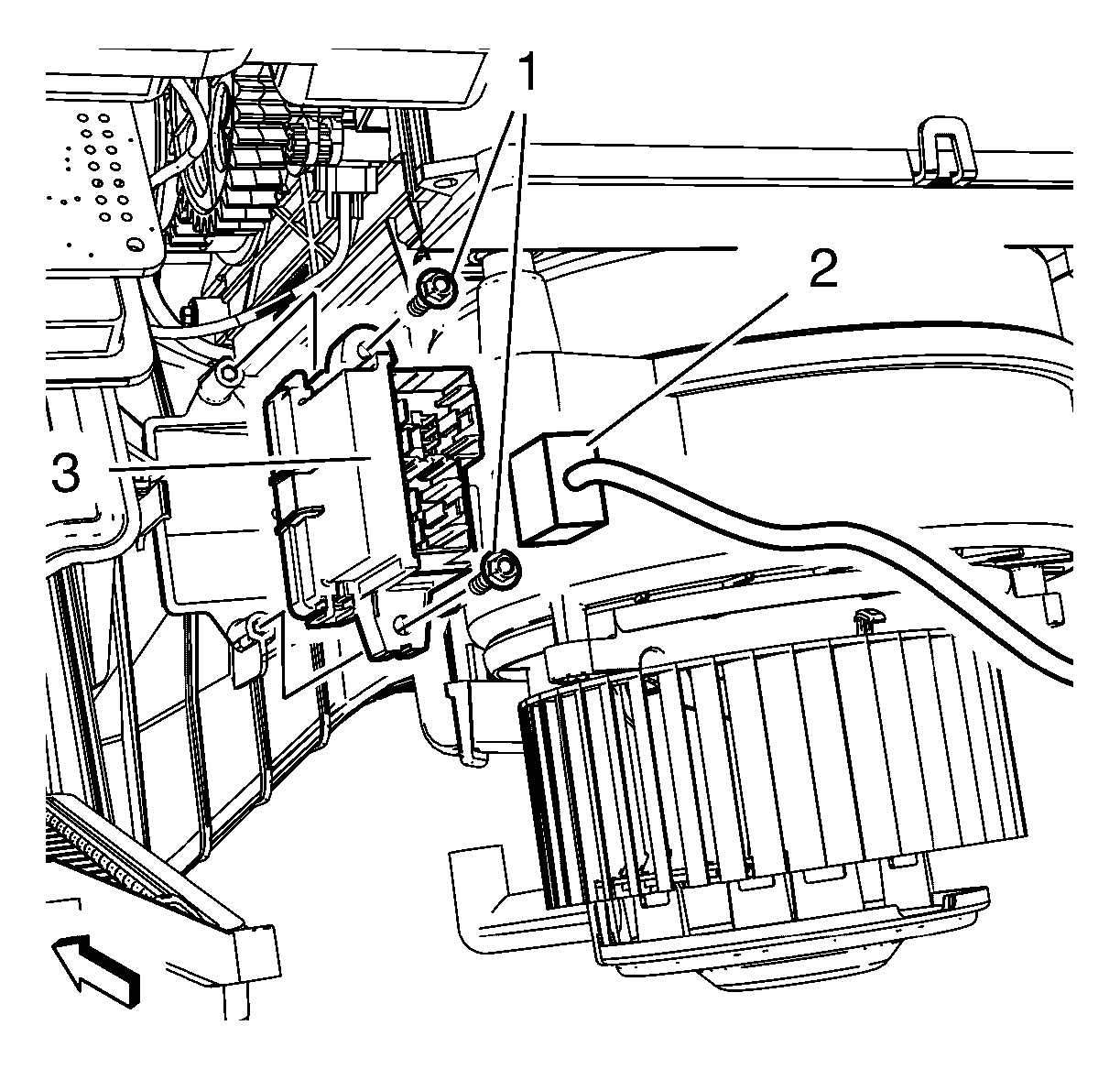

    Fig 1: Heater And Blower Control Module, Wiring Harness Plug And Bolts
    GM2027280Courtesy of GENERAL MOTORS COMPANY
  1. Install heater and blower and air conditioning control module (3).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the heater and blower and air conditioning control module wiring harness plug (2) and the 2 heater and blower and air conditioning control module bolts (1). Tighten to 2.5 Y (23 lb in).
  3. Install floor air outlet duct - right side. Refer to Floor Air Outlet Duct Replacement - Right Side .
  4. Install instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
